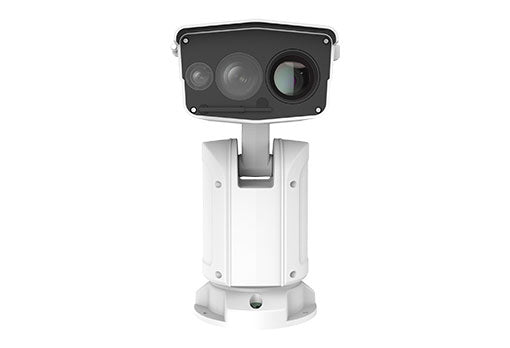

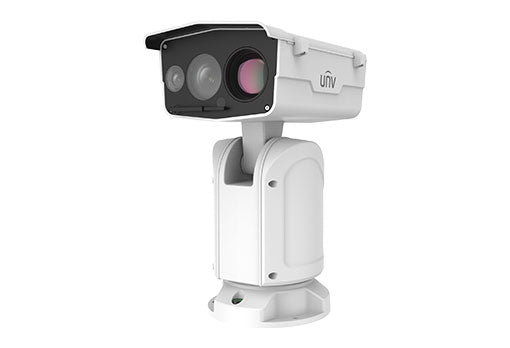

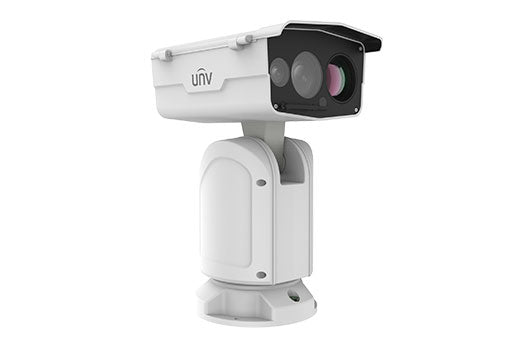

Uniview - TIC7632EL-F75-2X55G - Uniview 55X 2MP Thermal Positioning System Camera (55X, 384x288, 800m Laser, Audio, Alarm)

Product SKU: TIC7632EL-F75-2X55G
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$23,692.50
$42,129.00
  • Description
  • Specifications
  • Downloads

UNV 55X 2MP Thermal Positioning System Camera (55X, 384x288, 800m Laser, Audio, Alarm)



Features:



Optics

  • Thermal & Optical dual-spectrum image, dual video with single IP address, adaptable to more various scenes
  • Passive infrared thermal imaging, meet the requirement of concealed monitoring and not affected by bad weather condition such as fog, smoke, rain, snow and night etc.
  • Starlight illumination
  • Gyroscope stabilization for stable picture
  • Vari-focal laser:800m(2624.7ft) distance, proportional to optical zoom of camera module
  • 2D/3D DNR (Digital Noise Reduction)



Compression

  • Support 1080P@60fps，which has the smoother motion image
  • Ultra265, H.265, H.264, MJPEG
  • Five streams
  • Customize OSD



Network

  • ONVIF Conformance



Structure

  • Rain-sensing auto wiper
  • Embedded gradienter to ensure the horizontal position while installation
  • Power supply: DC 48V±25%、DC 24V±15%、AC 24V±25%
  • Support 1/1 audio in/out, 7/2 alarm in/out ,1 Serial port RS485
  • Support up to 256G Micro SD card
  • Wide temperature range: -40°C to 70°C (-40°F to 158°F)
  • IP66
 TIC7632EL-F75-2X55G
Optical Module
Image sensor1/1.8", progressive scan, 2.0 megapixel, CMOS
Lens6~ 330mm, AF automatic focusing and motorized zoom lens
Digital Zoom16
Optical Zoom55x
DORI DistanceLens（mm）Detect (m)Observe (m)Recognize (m)Identify (m)
672.1(236.4ft)28.8(94.6ft)14.4(47.3ft)7.2(23.6ft)
3303134.5(10283.7ft)1253.8(4113.5ft)626.9(2056.7ft)313.4(1028.4ft)
Angle of View (H)58.5°~ 1.7°
Angle of View (V)35.0°~ 1.0°
Angle of View (O)72.0°~ 2.0°
ShutterAuto/Manual, shutter time: 1~1/100000 s
Minimum IlluminationColour: 0.0005 Lux (F1.3, AGC ON)
0 Lux with IR
IrisAuto/Manual; F1.3 ~ F4.6
Day/NightIR-cut filter with auto switch (ICR)
Digital noise reduction2D/3D DNR
S/N>55dB
VF laserUp to 800m(2624.7ft)
DefogOptical Defog & Digital Defog
WDR120dB
Thermal Module
Sensor typeVanadium Oxide Uncooled Focal Plane Arrays
Max. Resolution384*288
Video format720P(1280*720), Max 25fps
Pixel size17μm
Response waveband8~14μm
NETD≤50mk
Lens(focal length)75mm
Angle of View (H)5.0°
Angle of View (V)4.0°
Angle of View (O)6.1°
FocusAuto/Semiautomatic/Manual
PaletteUp to 20 palettes of optional color, including: white hot, lava, iron oxide red, hot iron, medical, arctic, rainbow 1, rainbow 2, rainbow 3, depict hot, ice hot, black hot, mazarine, fusion, red hot, green hot, color 1, color 2, rain, puce
Detection DistanceVehicle: 5220m (target size 4mx1.4m); human: 2093m (target size 1.8mx0.5m);
Recognition DistanceVehicle: 1305m (target size: 4mx1.4m); human: 523m (target size: 1.8mx0.5m);
Identification DistanceVehicle: 746m (target size: 4mx1.4m); human: 299m (target size: 1.8mx0.5m);
Video
CompressionUltra265, H.265, H.264, MJPEG
H.264 code profileBaseline profile, Main Profile, High Profile
Frame RateMain Stream: 2MP (1920×1080): Max.60fps;
Sub Stream: 2MP (1920×1080): Max.60fps;
Third Stream: D1(720 x 576): Max.60fps;
Fourth Stream: D1(720 x 576): Max.60fps;
Fifth Stream: D1(720 x 576): Max.60fps;
HLCSupported
BLCSupported
OSDUp to 8 OSDs
ROIUp to 8 areas
Privacy MaskUp to 24 areas
Motion DetectionUp to 4 areas
Events
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U, G.711A
Two-way audioSupported
SuppressionSupported
Sampling Rate8 KHZ
Storage
Edge StorageMicro SD, up to 256GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
Web BrowserPlug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Pan & Tilt
Pan Range360° (endless)
Pan Speed0.1°/s ~ 140°/s
Preset speed: 140°/s
Tilt Range-90° ~ 45°
Tilt Speed0.1° ~ 40°/s
Preset speed: 40°/s
Number of Presets1024
PatrolPreset patrol, route patrol, recorded patrol
Home PositionSupported
Interface
Audio I/OAudio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O7/2
Serial Port1 RS485
Video OutputSupported(Thermal module)
Network1 RJ45 10M/100M/1000M Base-TX Ethernet+1 100M/1000M SFP
General
PowerDC 48V±25%、DC 24V±15%、AC 24V±25%
Power consumption: Max 119W
Dimensions (Φ × H)505.2mm × 280.1mm × 364.9mm (19.9" × 11.0" × 14.4")
Weight15.09kg(33.27lb)
Working Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection6KV
Vandal ResistantN/A
Ingress ProtectionIP66
TIC7632EL-F75-2X55G_20-_20Datasheet_0.pdf:
