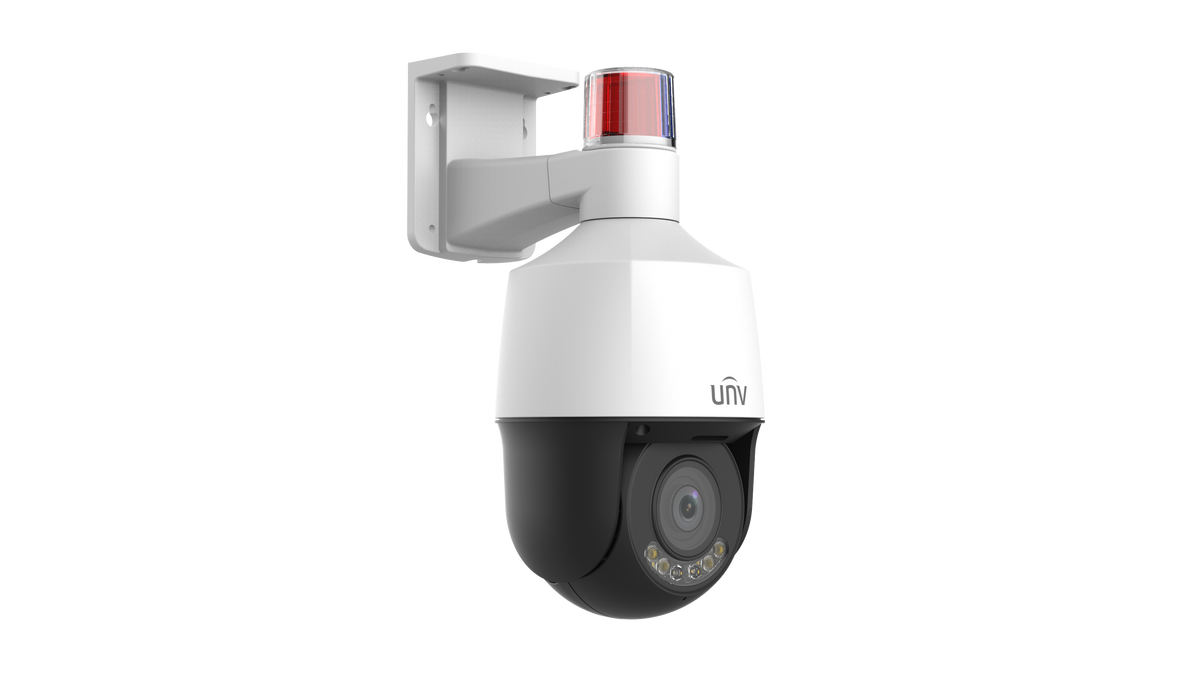

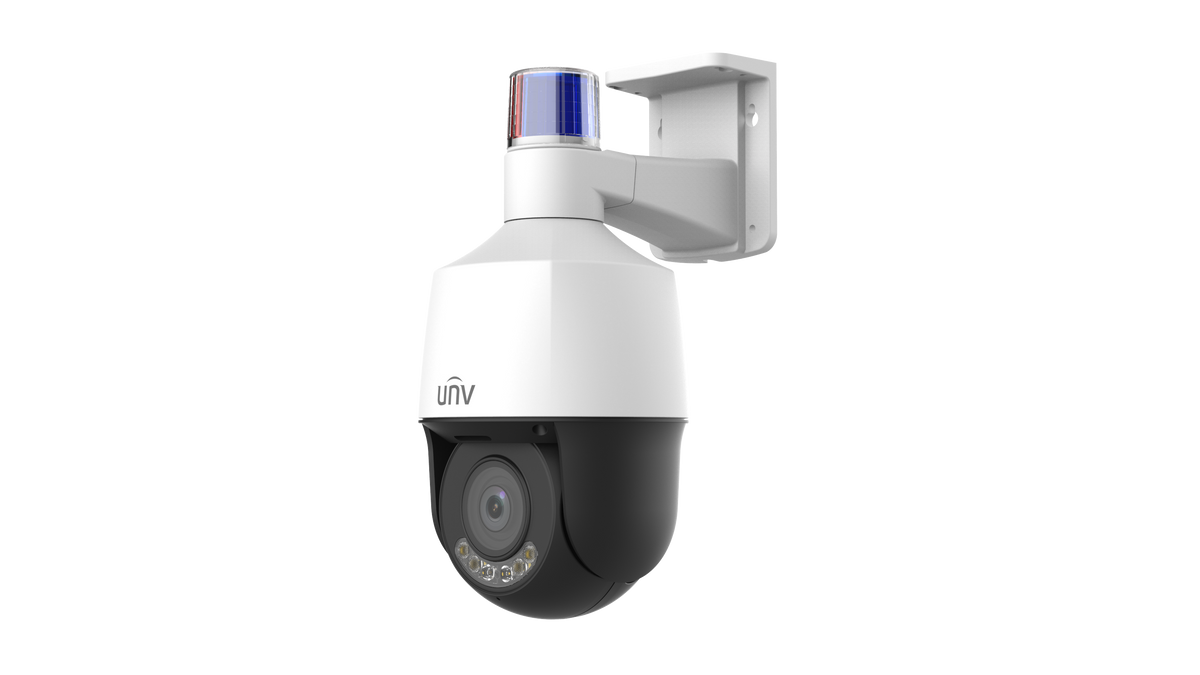

Uniview - IPC6324LWH-AX5C-VG2 - UNV 4MP Active Deterrence Wise-ISP Metal PTZ Camera (2.7mm-13.5mm,Audio&Alarm, Two-Way Audio, Starlight, Auto Tracking)
Uniview - IPC6324LWH-AX5C-VG2 - UNV 4MP Active Deterrence Wise-ISP Metal PTZ Camera (2.7mm-13.5mm,Audio&Alarm, Two-Way Audio, Starlight, Auto Tracking)
Uniview - IPC6324LWH-AX5C-VG2 - UNV 4MP Active Deterrence Wise-ISP Metal PTZ Camera (2.7mm-13.5mm,Audio&Alarm, Two-Way Audio, Starlight, Auto Tracking)
Uniview - IPC6324LWH-AX5C-VG2 - UNV 4MP Active Deterrence Wise-ISP Metal PTZ Camera (2.7mm-13.5mm,Audio&Alarm, Two-Way Audio, Starlight, Auto Tracking)
Uniview

Uniview - IPC6324LWH-AX5C-VG2 - Uniview 4MP Active Deterrence Wise-ISP Metal PTZ Camera (2.7mm-13.5mm,Audio&Alarm, Two-Way Audio, Starlight, Auto Tracking)

Product SKU: IPC6324LWH-AX5C-VG2
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$371.25
$919.00
  • Description
  • Specifications
  • Downloads

4MP 5X Wise-ISP Tri-Guard Warm light Network PTZ Camera



Features:

  • High quality image with 4 MP, 1/1.8" CMOS sensor
  • Support ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes
  • Ultra 265, H.265, H.264, MJPEG
  • 2688 × 1520@30 fps in the main stream, 16 : 9 aspect ratio
  • Smart intrusion prevention, support false alarm filtering, Cross Line Detection, Intrusion Detection
  • Up to 120 dB WDR (Wide Dynamic Range)
  • Built-in Mic and Speaker
  • 40 m (131.23 ft) warm light distance
  • Micro SD, up to 512GB
  • IP66 protection
  • DC 12 V or PoE (IEEE 802.3at) power supply
 IPC6324LWH-AX5C-VG2
Camera
Sensor1/1.8" CMOS
Min. IlluminationColour: 0.0005 Lux (F1.2, AGC ON)
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 to 1/100000 s
WDR120 dB
S/N>56 dB
Lens
Focal Length2.7 to 13.5 mm
Optical Zoom5X
Field of View (H)113.69° to 50.29°
Field of View (V)59.46° to 28.45°
Field of View (D)156.23° to 59.34°
DORI
DORI Distance (Lens)2.7 to 13.5 mm
DORI Distance (Detect)98.6 to 209.9 m (323.3 to 688.7 ft)
DORI Distance (Observe)39.4 to 84.0 m (129.3 to 275.5 ft)
DORI Distance (Recognize)19.7 to 137.7 m (64.7 to 137.7 ft)
DORI Distance (Identify)9.9 to 21 m (32.3 to 68.9 ft)
Illuminator
Illumination Distance (Warm Light)40 m
Light On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Video Bit Rate128 Kbps to 6144 Kbps
U-codeSupport
ROISupport
Video StreamTriple streams
Privacy MaskUp to 4 areas
OSDUp to 8 OSDs
Frame Rate-Main Stream4MP (2560 x 1440)@25fps (Default)
4MP (2688 x 1520), Max 30fps;
4MP (2560 x 1440), Max 30fps
Events
Basic DetectionMotion detection, Audio detection, Tampering alarm
General FunctionWatermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Motion DetectionSupport
Tampering DetectionSupport
Audio DetectionSupport
UMD (Ultra Motion Detection)Support
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate128 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz, 16 kHz
Storage
Edge StorageMicro SD, up to 512 GB
Intelligent
Auto TrackingSupport, target filtering: human only
Smart Intrusion PreventionSupport false alarm filtering: cross Line detection, intrusion detection (based on human body and vehicle detection)
Network
ProtocolsTLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible IntegrationONVIF (Profile S,Profile G,Profile T), API
SecurityPassword Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
ClientEZStation, EZLive, EZView
Web BrowserPlug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above
White BalanceAuto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
FlipNormal, Flip vertical, Flip horizontal, 180°
HLCSupport
BLCSupport
DefogDigital defog
PTZ
Number of Presets1024
Preset Patrol16 patrols, up to 64 presets for each patrol
Patrol Stay Time120 s to 1800 s
Home PositionSupport
Number of Presets (IPC)1024
Pan Range0° to 345°
Pan Speed1°/s to 50°/s
Tilt Range-10° to 100°
Tilt Speed1°/s to 40°/s
Number of Patrol16
Interface
Audio I/O1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O1/1
Built-in MicSupport
Built-in SpeakerSupport
Network1 × RJ45 10 M/100 M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130)
FCC SDoC (47 CFR Part 15; Subpart B)
SafetyUL (UL 62368-1)
CUL (CAN/CSA C22.2 No. 62368-1)
CE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
ProtectionIP66 (IEC 60529)
General
PowerDC 12 V±25%, PoE (IEEE 802.3at)
Working Environment-30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection2 KV
Reset ButtonSupport
MaterialMetal
Web Client Language22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
HeaterSupport
Live View
Maximum Bitstream35
OSD ColorSupport
OSD Character Number40
UNV_20IPC6324LWH-AX5C-VG2_204MP_205X_20Wise-ISP_20Tri-Guard_20Warm_20light_20Network_20PTZ_20Camera.pdf:
