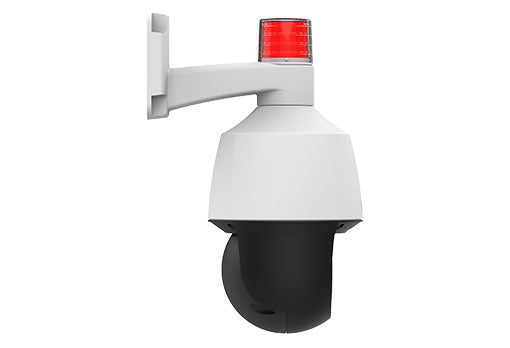

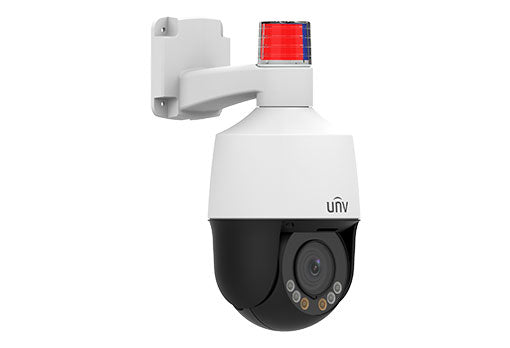

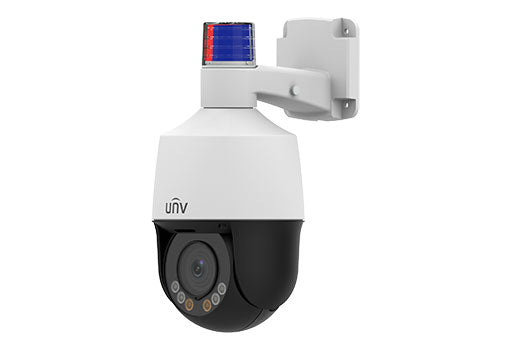

UNV - IPC6312LFW-AX4C-VG - UNV 2MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
UNV - IPC6312LFW-AX4C-VG - UNV 2MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
UNV - IPC6312LFW-AX4C-VG - UNV 2MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
UNV - IPC6312LFW-AX4C-VG - UNV 2MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
UNV - IPC6312LFW-AX4C-VG - UNV 2MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
UNV - IPC6312LFW-AX4C-VG - UNV 2MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)
Uniview

Uniview - IPC6312LFW-AX4C-VG - Uniview 2MP Light&Sound Alarm PTZ Camera (2.8mm-12mm, Two-Way Audio, Starlight, Auto Tracking)

Product SKU: IPC6312LFW-AX4C-VG
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$209.25
$519.00
  • Description
  • Specifications
  • Downloads

2MP LightHunter Active Deterrence PTZ Camera



Features:

  • High quality image with 2MP, 1/2.7"CMOS sensor
  • Ultra 265, H.265, H.264, MJPEG
  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios
  • LightHunter technology ensures ultra-high image quality in low illumination environment
  • Up to 120 dB Optical WDR (Wide Dynamic Range)
  • Built-in Mic & Speaker
  • Smart IR, Up to 50 m (164 ft) IR distance and 10m (33 ft) warm light distance
  • Micro SD, up to 256GB
  • IP66 protection
  • DC12V or PoE (IEEE 802.3af) power supply
IPC6312LFW-AX4C-VG
Camera
Sensor1/2.7" progressive scan, 2.0 megapixel, CMOS
Min. IlluminationColour: 0.002Lux (F1.6, AGC ON)
0Lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, shutter time: 1 s ~ 1/100000 s
WDR120dB
S/N>52dB
Lens
Lens type2.8~12mm，AF automatic focusing and motorized zoom lens
Optical Zoom4
IrisFixed; F1.6
Field of View (H)105.2° ~ 29.32°
Field of View (V)52.6° ~ 16.38°
Field of View (D)108.7° ~ 33.3°
DORI
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)
2.8mm43.4 (142.4ft)17.4 (57.1ft)8.7 (28.5ft)
12mm186.2 (610.9ft)74.5 (244.4ft)37.2 (122.1ft)
Illuminator
IR RangeUp to 50m (164ft)
Warm Light RangeUp to 10m (33ft)
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps ~ 16 Mbps
ROISupport
Video StreamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 4 areas
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
DefogDigital Defog
Intelligent
Smart Intrusion PreventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
People CountingSupport people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Audio detection, Tampering Alarm
Auto TrackingSupport
General FunctionWatermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U,G.711A
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP , PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP , 802.1x , SNMP, SSL
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZLive
EZView
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range0° ~ 345°
Pan Speed0.1°/s ~ 50°/s
Preset speed: 50°/s
Tilt Range-10° ~ 110°
Tilt Speed0.1°/s ~ 40°/s
Preset speed: 40°/s
Number of Presets256
Preset Patrol16 patrols, up to 64 presets for each patrol
Patrol Stay Time  120s~1800s
Home PositionSupport
Interface
Built-in MicSupport
Built-in SpeakerSupport
Network1 * RJ45 10M/100M Base-TX Ethernet
Alarm LightSupport
Certification
EMCCE-EMC (EN55032:2015, EN55024:2010+A1:2015, EN55035:2017, EN61000-3-2:2014, EN61000-3-3:2013)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-ROHS (2011/65/EU;(EU)2015/863)
ProtectionIP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
PowerDC12V(±25%), PoE (IEEE 802.3af)
Power consumption: MAX 15W
Power InterfaceØ 5.5mm coaxial power plug
Dimensions (Ø x H)Φ133mm*269mm (Φ5.2”x 10.6”)
Weight0.87 kg (1.92lb)
Working Environment-20°C ~ 60°C (-4°F to 140°F), Humidity:≤95% RH(non-condensing)
Storage Environment-40°C ~ 70°C (-40°F to 158°F), Humidity:≤95% RH(non-condensing)
Surge Protection2KV
Reset ButtonSupport
UNV_20IPC6312LFW-AX4C-VG_202MP_20LightHunter_20Active_20Deterrence_20PTZ_20Camera_20V1.6-EN.pdf:
