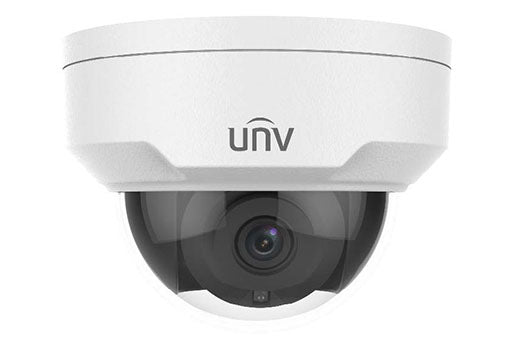

Uniview - IPC324SS-DF40K-I0 - UNV 4MP Network Fixed Dome(LightHunter,Premier Protection,4mm,WDR,30m IR,SD Slot,3 Axis,PoE,H.265,Audio,Alarm)
Uniview - IPC324SS-DF40K-I0 - UNV 4MP Network Fixed Dome(LightHunter,Premier Protection,4mm,WDR,30m IR,SD Slot,3 Axis,PoE,H.265,Audio,Alarm)
Uniview

Uniview - IPC324SS-DF40K-I0 - Uniview 4MP Network Fixed Dome(LightHunter,Premier Protection,4mm,WDR,30m IR,SD Slot,3 Axis,PoE,H.265,Audio,Alarm)

Product SKU: IPC324SS-DF40K-I0
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$118.80
$299.00
  • Description
  • Specifications
  • Downloads

UNV 4MP Network Fixed Dome(LightHunter,Premier Protection,4.0mm,WDR,30m IR,SD Slot,3 Axis,PoE,H.265,Audio,Alarm)



Features:

Optics:

  • 1/2.7’’, Powered by lighthunter
  • Smart IR, up to 40m (131 ft) IR distance
  • Up to 120 dB Optical WDR (Wide Dynamic Range)



Smart:

  • Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter Area, Leave Area detection
  • People Counting, support people flow counting and crowd density monitoring, suitable for different statistical scenarios



Compression:

  • Ultra 265, H.265, H.264, MJPEG
  • Triple streams
  • 2688*1520@30fps in the main stream
  • ROI (Region of Interest)



Network:

  • ONVIF Conformance



Structure:

  • DC12V or PoE power supply
  • Wide voltage range of ±25% in DC
  • Micro SD, up to 256 GB
  • Alarm 1 in and 1 out, Audio 1 in and 1 out
  • IP67 ingress protection
  • IK10 vandal resistant
IPC324SS-DF28K-I0IPC324SS-DF40K-I0
Camera
Sensor1/2.7", 4.0 megapixel, progressive scan, CMOS
Lens2.8mm@F1.64.0mm@F1.6
IrisFixed
DORI DistanceLens (mm)Detect (m)Observe (m)Recognize (m)
2.863.0(206.7ft)25.2(82.7ft)12.6(41.7ft)
4.090.0(295.3ft)36.0(118.1ft)18.0(59.1ft)
Field of View (H)95.8°78.9°
Field of View (V)51.5°40.8°
Field of View (D)124.5°97.0°
ShutterAuto/Manual, 1 ~ 1/100000s
Adjustment anglePan: 0°~355°Tilt: 0°~80°Rotate: 0°~355°
Min. IlluminationColour:0.002lux (F1.6, AGC ON)
0 lux with IR
WDR120dB
Day/NightIR-cut filter with auto switch (ICR)
S/N>56dB
IR RangeUp to 40m (131 ft) IR range
Wavelength850nm
IR On/Off ControlAuto/Manual
DefogDigital Defog
Video
Video CompressionUltra 265, H.265, H.264, MJPEG
Frame RateMain Stream: 4MP(2688*1520),Max 30fps;
Sub Stream: 2MP (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps
Video Bit Rate128 Kbps~16 Mbps
ROISupported
Video streamTriple streams
OSDUp to 8 OSDs
Privacy MaskUp to 8 areas(8 blacks/8 mosaics)
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti-clockwise
HLCSupport
BLCSupport
Intelligent
Smart intrusion preventionSupport false alarm filtering: Cross Line detection, Intrusion detection, Enter Area detection, Leave Area detection
Statistical AnalysisPeople counting, support people flow counting and crowd density monitoring
Events
Basic DetectionMotion detection, Audio detection, Tampering alarm
Exception Detection And StatisticsObject Removed, Object Left Behind
General FunctionWatermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio CompressionG.711U,G.711A
Two-way AudioSupported
SuppressionSupported
Sampling Rate8KHZ
Storage
Edge StorageMicro SD, up to 256 GB
Network StorageANR,NAS(NFS)
Network
ProtocolsIPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP
Compatible IntegrationONVIF (Profile S, Profile G, Profile T), API
ClientEZStation
EZLive
Ezview
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Interface
Audio I/OAudio cable
1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O1/1
Network1 * RJ45 10M/100M Base-TX Ethernet
Certification
EMCCE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
SafetyCE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)
IK10 (IEC 62262:2002)
General

Power
 		DC12V(±25%), PoE(IEEE 802.3af)
Power consumption: Max 5W
Dimensions (Ø x H)Φ109 x 81mm(Φ4.3’’ x 3.2’’)
Weight0.43kg(0.95lb)
Working Environment-40°C ~ 60°C (-40°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment-40°C ~ 70°C (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge protection2KV
