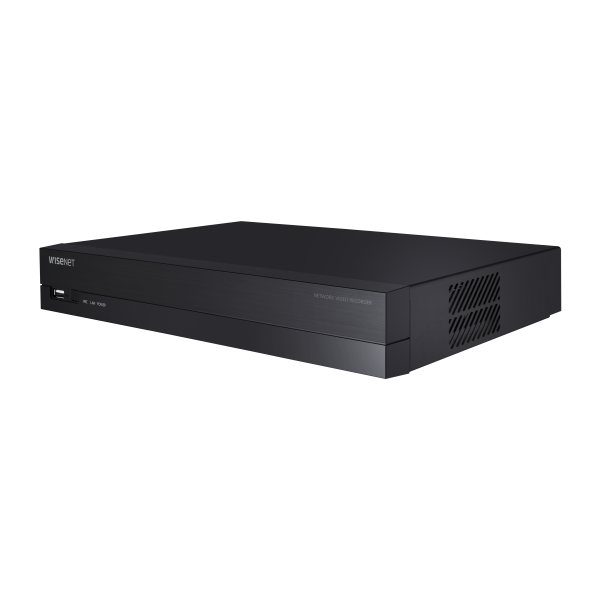

Hanwha - QRN-430S-4TB - 4K NVR (Intel based), 4TB RAW, 4CH with 4 PoE/PoE+ ports (PoE Budget 35W), H265,H264, MJPEG, 1 fixed internal SATA HDDs (6TB max), ARB (Automatic Recovery Backup), 40 Mbps recording / up to 32 Mbps playback, Dual stream record
Hanwha - QRN-430S-4TB - 4K NVR (Intel based), 4TB RAW, 4CH with 4 PoE/PoE+ ports (PoE Budget 35W), H265,H264, MJPEG, 1 fixed internal SATA HDDs (6TB max), ARB (Automatic Recovery Backup), 40 Mbps recording / up to 32 Mbps playback, Dual stream record
Hanwha - QRN-430S-4TB - 4K NVR (Intel based), 4TB RAW, 4CH with 4 PoE/PoE+ ports (PoE Budget 35W), H265,H264, MJPEG, 1 fixed internal SATA HDDs (6TB max), ARB (Automatic Recovery Backup), 40 Mbps recording / up to 32 Mbps playback, Dual stream record
Hanwha - QRN-430S-4TB - 4K NVR (Intel based), 4TB RAW, 4CH with 4 PoE/PoE+ ports (PoE Budget 35W), H265,H264, MJPEG, 1 fixed internal SATA HDDs (6TB max), ARB (Automatic Recovery Backup), 40 Mbps recording / up to 32 Mbps playback, Dual stream record
Hanwha - QRN-430S-4TB - 4K NVR (Intel based), 4TB RAW, 4CH with 4 PoE/PoE+ ports (PoE Budget 35W), H265,H264, MJPEG, 1 fixed internal SATA HDDs (6TB max), ARB (Automatic Recovery Backup), 40 Mbps recording / up to 32 Mbps playback, Dual stream record
Hanwha - QRN-430S-4TB - 4K NVR (Intel based), 4TB RAW, 4CH with 4 PoE/PoE+ ports (PoE Budget 35W), H265,H264, MJPEG, 1 fixed internal SATA HDDs (6TB max), ARB (Automatic Recovery Backup), 40 Mbps recording / up to 32 Mbps playback, Dual stream record
Hanwha Vision

Hanwha - QRN-430S-4TB - 4K NVR (Intel based), 4TB RAW, 4CH with 4 PoE/PoE+ ports (PoE Budget 35W), H265,H264, MJPEG, 1 fixed internal SATA HDDs (6TB max), ARB (Automatic Recovery Backup), 40 Mbps recording / up to 32 Mbps playback, Dual stream record

Product SKU: QRN-430S-4TB
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$754.65
$997.00
  • Description
  • Specifications
  • Downloads

4K NVR (Intel based), 4TB RAW, 4CH with 4 PoE/PoE+ ports (PoE Budget 35W), H265,H264, MJPEG, 1 fixed internal SATA HDDs (6TB max), ARB (Automatic Recovery Backup), 40 Mbps recording / up to 32 Mbps playback, Dual stream recording, WiseStream technology, 4K HDMI display, max. resolution of 8MP recording/display, QR Code



Features :

  • Up to 4CH 8MP resolution
  • H.265, H.264, MJPEG codec
  • 40Mbps network camera recording
  • Plug & play by 4 PoE port
  • Max. 1 HDD (Up to 6TB)
  • HDMI output
  • P2P service (QR code)
Display
Network cameraInputsInputs
Resolution8MP ~ CIF
ProtocolsSUNAPI, ONVIF
DecodingLocal DisplayHDMI
Resolution[Local Monitor] 8M(30fps), 1080p(120fps), 720P(120fps), D1(120fps)
Performance
RecordCompressionH.265, H.264, MJPEG
Recording BandwidthMax. 40Mbps
Resolution8MP ~ CIF
ModeNormal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
Event TriggerAlarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event
Event Actione-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & PlayPlayback BandwidthMax. 32Mbps
UserMax. 4 Users (Local 1, Remote 3)
Simultaneous playbackMax. 16CH(Local 4CH, Remote 4CH per user)
Fisheye DewarpingCMS
StorageSupported HDDUp to 6TB
HDD SlotSATA 1ea(Max. 6TB)
BackupFile backupBU/Exe(GUI), JPG/AVI(Network)
FunctionMulti channel(Up to 4CH) Play, Date-Time/Title display
Functions
Camera SetupItemIP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon)
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZControlVia GUI, Webviewer
Smart phoneSupport ModeliOS, Android
Protocol SupportRTP, RTSP, HTTP, CGI(SUNAPI)
ControlLive 4CH(Multi-Profile Support), Playback 4CH
Max. Remote UsersSearch(3), Live Unicast(10)
RedundancyFailoverN+1
ARBSupport
Easy configurationP2P(QR code)

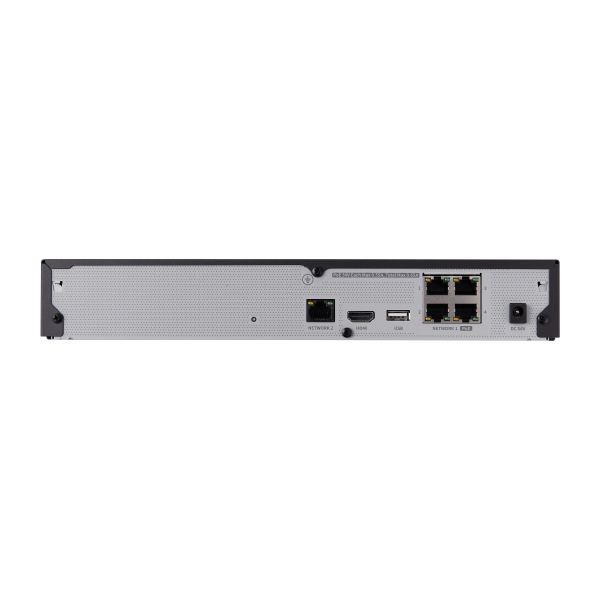

Interface
HDMI1EA 3840x2160 30Hz
EthernetPoE RJ-45(LAN, 10/100) 4 ea ,RJ-45 1ea (WAN, 10/100)
USB2EA(Front 1 x USB 2.0, Rear 1 x USB 2.0)
Power inletDC Adaptor
System
System ControlMouse, Web
LanguageEnglish, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature0°C to +40°C(32℉ to 104℉)
Operating Humidity20% ~ 85% RH
Electrical
Power Input100 ~ 240 VAC ±10%; 50/60 Hz
Power ConsumptionMax 52W(1HDD, PoE On)
PoE Budget35W
Mechanical
Color / MaterialBlack / Metal
Dimension (WxHxD)300.0 x 47.1 x 208.4 mm (11.81 x 1.85 x 8.20 inch)
Weight1.03Kg (2.27lb)
Network
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNSHanwha DDNS
Transmission BandwidthMax. 50Mbps
AudioInput/Output4 CH(network)
CompressionG.711, G.726, AAC(16/48KHz)
Audio Communication2-Way
Max Remote UsersSearch(3), Live Unicast(10), Multicast(20)
SecurityIP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Viewer SoftwareWAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
QRN-430S_20-_20A_E_20Specifications_1.pdf:
QRN-430S_20-_20Drawings_1.pdf:
QRN-430S_20-_20Hanwha_20Techwin_20America_20-_20NDAA_20Compliant_20Product_20List_205-2022_1.pdf:
QRN-430S_20-_20Specifications_1.pdf:
