33% $1,392.95

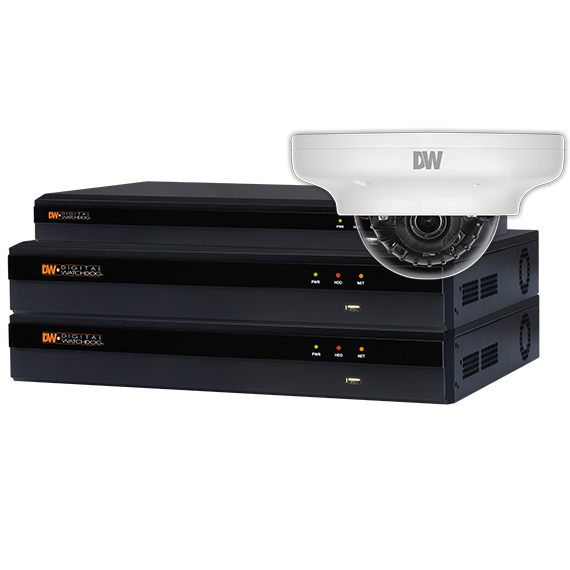

Digital Watchdog - DW-VP12V7BUN28 - BUNDLE AND SAVE 20% - (8) 2.1MP Fixed Focal Vandal Dome cameras with 2TB HDD NVR Consist of 1 - DW-VG4122T8P & 8 - DWC-MV72Di28T
Digital Watchdog - DW-VP12V7BUN28 - BUNDLE AND SAVE 20% - (8) 2.1MP Fixed Focal Vandal Dome cameras with 2TB HDD NVR Consist of 1 - DW-VG4122T8P & 8 - DWC-MV72Di28T
Digital Watchdog

Digital Watchdog - DW-VP12V7BUN28 - BUNDLE AND SAVE 20% - (8) 2.1MP Fixed Focal Vandal Dome cameras with 2TB HDD NVR Consist of 1 - DW-VG4122T8P & 8 - DWC-MV72Di28T

Product SKU: DW-VP12V7BUN28
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$2,893.05
$4,286.00
  • Description
  • Specifications
  • Downloads

BUNDLE AND SAVE 20% - (8) 2.1MP Fixed Focal Vandal Dome cameras with 2TB HDD NVR Consist of 1 - DW-VG4122T8P & 8 - DWC-MV72Di28T



Features:

  • Kits w/ 2TB, 3TB and 4TB of storage capacity.
  • Supports all ONVIF conformant IP cameras.
  • Record/manage single-sensor IP cameras up to 4K, with 160Mbps maximum throughput.
  • Local power for 4 IP cameras via resident PoE switch.
  •  Kits w/ 4, 8, or 16 ultra low-profile vandal dome IP cameras with 2.8mm fixed lens.
  • Smart IR, D-WDR, H.265, H.264, MJPG.
Specification: DW-VG4122T8P
Hardware
Display Modes1
12
4
6
9
Sequence
Display SpeedUp to 30fps per channel
Local Video Output Resolution1024x768
1280x1024
1280x720
1920x1080 (1080p)
800x600
3840×2160 (4K)
2560x1440 (1440p)
Local Video Outputs1x True HD output
1x VGA output
Max Supported Recording Resolution4K (3840×2160)
Video CompressionH.264
H.265
OS on SSDN/A
Max throughput (Mbps)80Mbps
Input channels12 Channels
8 PoE channels
Storage
Raw internal storage options2TB, 4TB, 6TB, 8TB, 10, TB, 12TB, 16TB, 20TB, 32TB
RAID OptionsNo RAID
Max HDD Bay2 x SATA HDD
Maximum StorageNo storage (DW-VG4128P)
2TB (DW-VG4122T8P)
4TB (DW-VG4124T8P)
6TB (DW-VG4126T8P)
8TB (DW-VG4128T8P)
10TB (DW-VG41210T8P)
12TB (DW-VG41212T8P)
16TB (DW-VG41216T8P)
20TB (DW-VG41220T8P)
32TB (DW-VG41232T8P)
VMS features
Alarm in/out1 alarm output
4 alarm inputs
Audio in/out1 output
Performance featuresCamera Color Control
CCIP
Covert Channel
Digital Zoom in live and playback
Import and export settings
PoE built-in
Quick Setup under 3 Minutes
Real-time temp alert
Playback FunctionsCalendar
Event search
Smart motion search
Thumbnail search
Timeline
Playback speedx1
x16
x2
x32
x4
x64
x8
x99
Post-recording0~5 minutes
Pre- recording0~5 seconds
PTZ controlRS485
UTC
Recording ModesContinuous
Emergency
Motion detection
Pre- and post-alarm
Quick backup
Scheduled
Sensor
Recording Resolution and Recording RateUp to 3840×2160 (4K): 360fps
System OperationGraphical user interface (GUI)
Joystick Controller (optional)
USB mouse (included)
Network
BackupLocal backup via USB
Network backup via CMS
Ethernet Ports1x 1G Ethernet (RJ45)
Firmware UpgradeCMS over network
FTP
USB
ProtocolDDNS
DHCP
RTSP
Static fixed IP
uPNP
System recovery after power failureAuto-reboot and journaling file system
Transmission speed liveUp to 3840×2160 (4K): 360fps
Remote ClientDW VMAX Plus App
C3 CMS
DW Mobile Plus
DW Witness
Electrical
Maximum Power per PortUp to 30W
Power Consumption120W total power budget (recorder + PoE ports)
Power Requirements48V DC, 2.5A
Total PoE Power Budget12W per PoE port
96W
General
AccessoriesMouse
Operating Temperature and Humidity10~90% RH
32~113 °F (0~45 °C)
Rail kitDW-G419RE (optional. Sold separately)
Recorder Dimensions (H X W X D)1.77" x 14.96" x 10.58" (45 x 380 x 268.8mm)
Serial portsRS485
USB interfaceYes
Warranty5 Year Limited Warranty
Weight (barebone, HDD not included)3.74 lbs (1.69 kg)
Specification: DWC-MV72Di28T
Image sensor2.1MP/1080p 1/2.9" CMOS sensor
Maximum resolution2.1MP/1080p
Minimum Scene Illumination in color0.0 lux (B/W)
0.16 lux (color)
Lens
Horizontal Field of View (HFOV)109°
Illumination Distance80' range Smart IR™
Lens TypeFixed Lens
Vertical Field of View (VFOV)53.2°
Operational
3D digital noise reductionSmart DNR™ 3D Digital Noise Reduction
Auto gain controlAuto
Day and nightAuto day/night
Day (color)
Night (B/W)
Mirror/flipYes
Motion DetectionYes
Operational NotificationsEmail
FTP server
SD card recording
SharpnessYes
White BalanceYes
Network
Network Web ViewerGoogle Chrome® browser
Linux® OS
Mac® OS
Microsoft Edge® browser
Mozilla Firefox® browser
Safari® browser
Windows OS
ProtocolZeroconf (AutoIP)
Security802.1x
Digest authentication (ID/PW)
HTTPS (TLS)
IP filtering
Video Compression TypeH.264
H.265
MJPEG
Video Management SoftwareDW Spectrum®
Environmental
Environmental Operating Temperature-4°F ~ 122°F (-20°C ~ 50°C)
Mounting Accessories (Required/Optional)Optional. Sold separately
Mechanical
HousingVandal Dome
Housing ColorIvory
IK ratingIK10 Rated
IP ratingWeather Resistant (IP67)
MaterialsAluminum die-casting
Electrical
American wire gauge (AWG)Cable type #18
Power RequirementsAdapter not included
PoE
General
Warranty5 Year Warranty
DW_DS_DW-VG4128xTP_Rev0724_20_1.pdf:
DW_DS_DWC-MV72Di28T_REV0421_20_1.pdf:
