Digital Watchdog

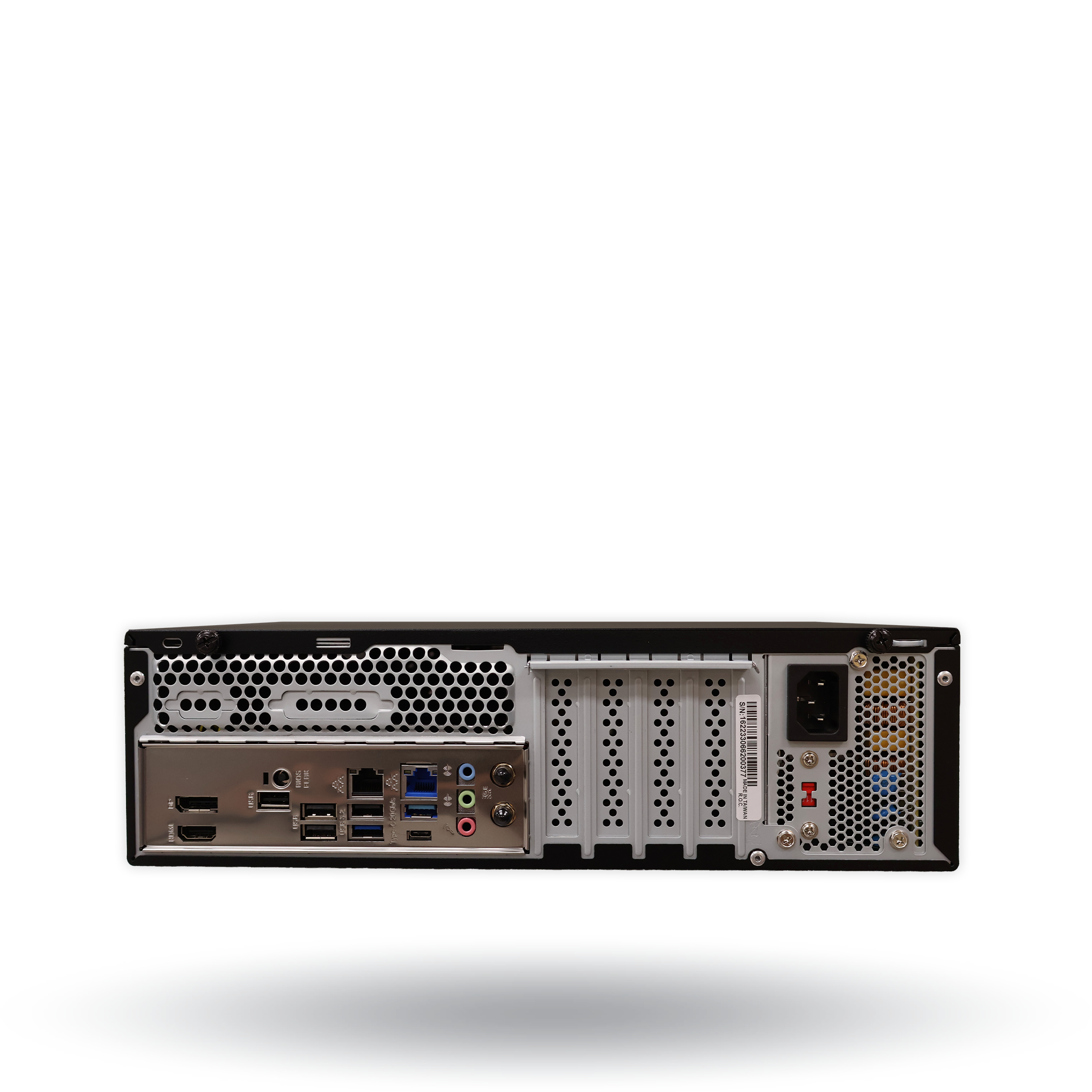

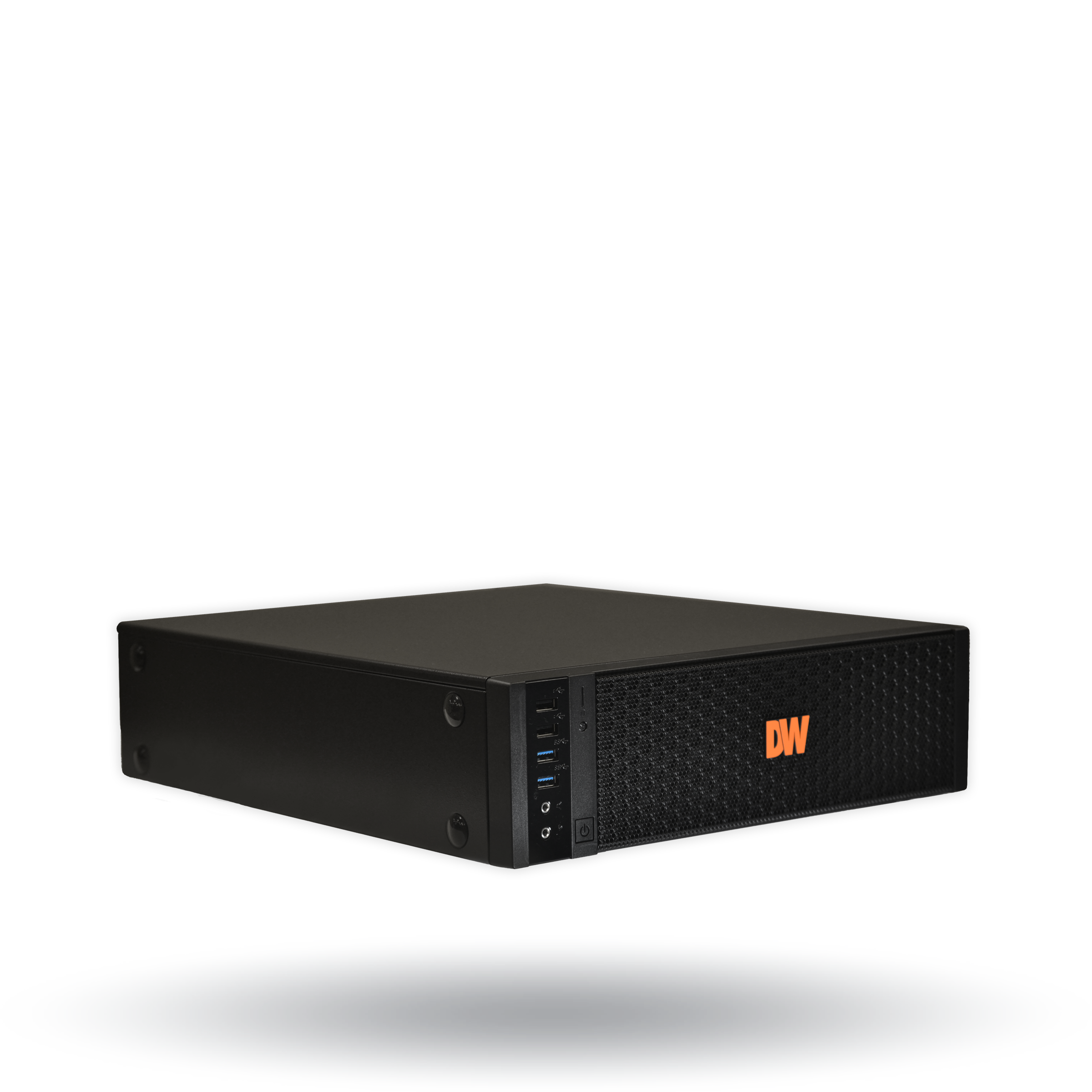

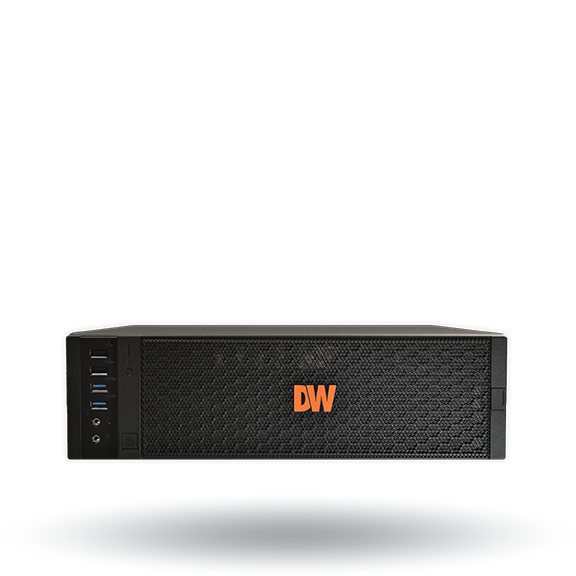

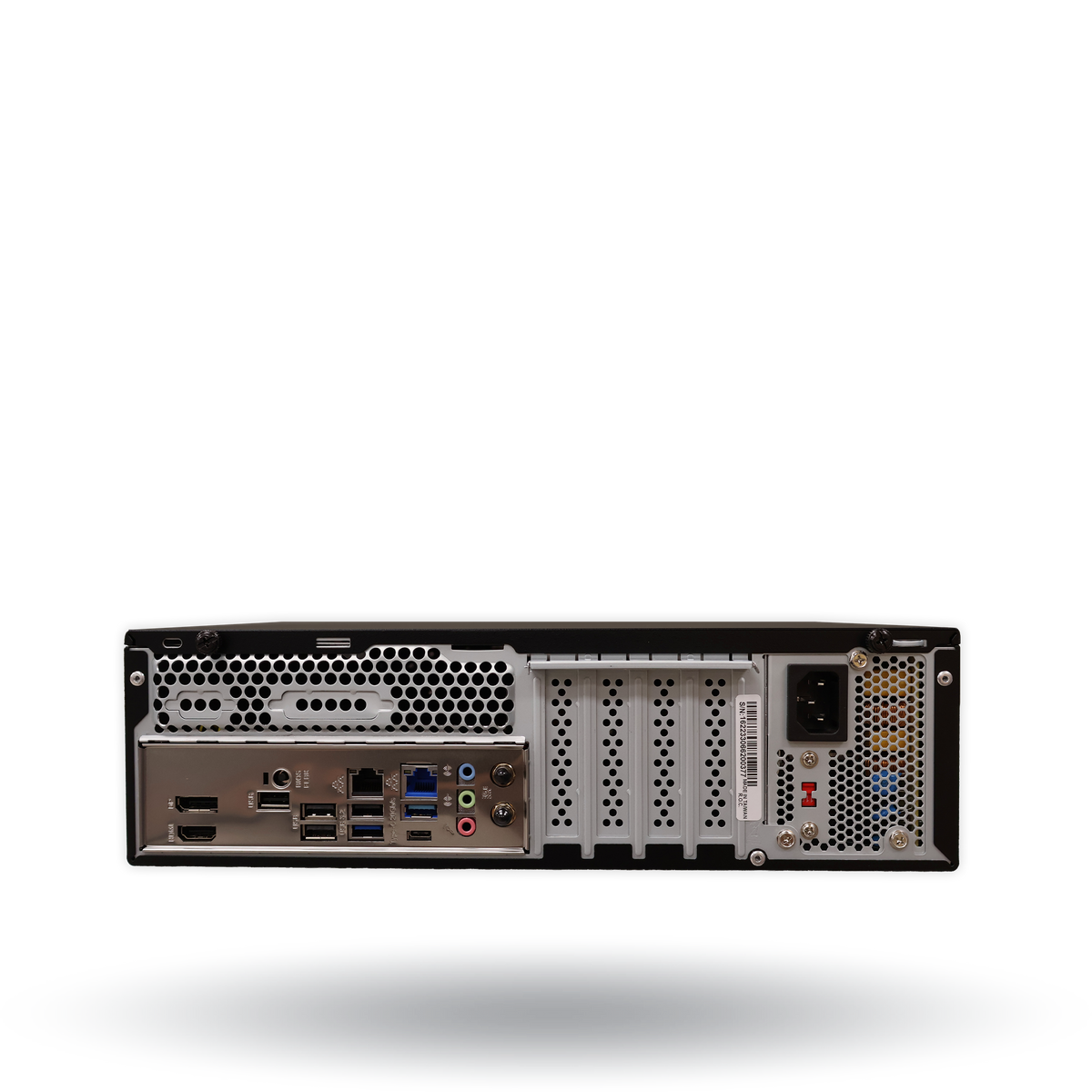

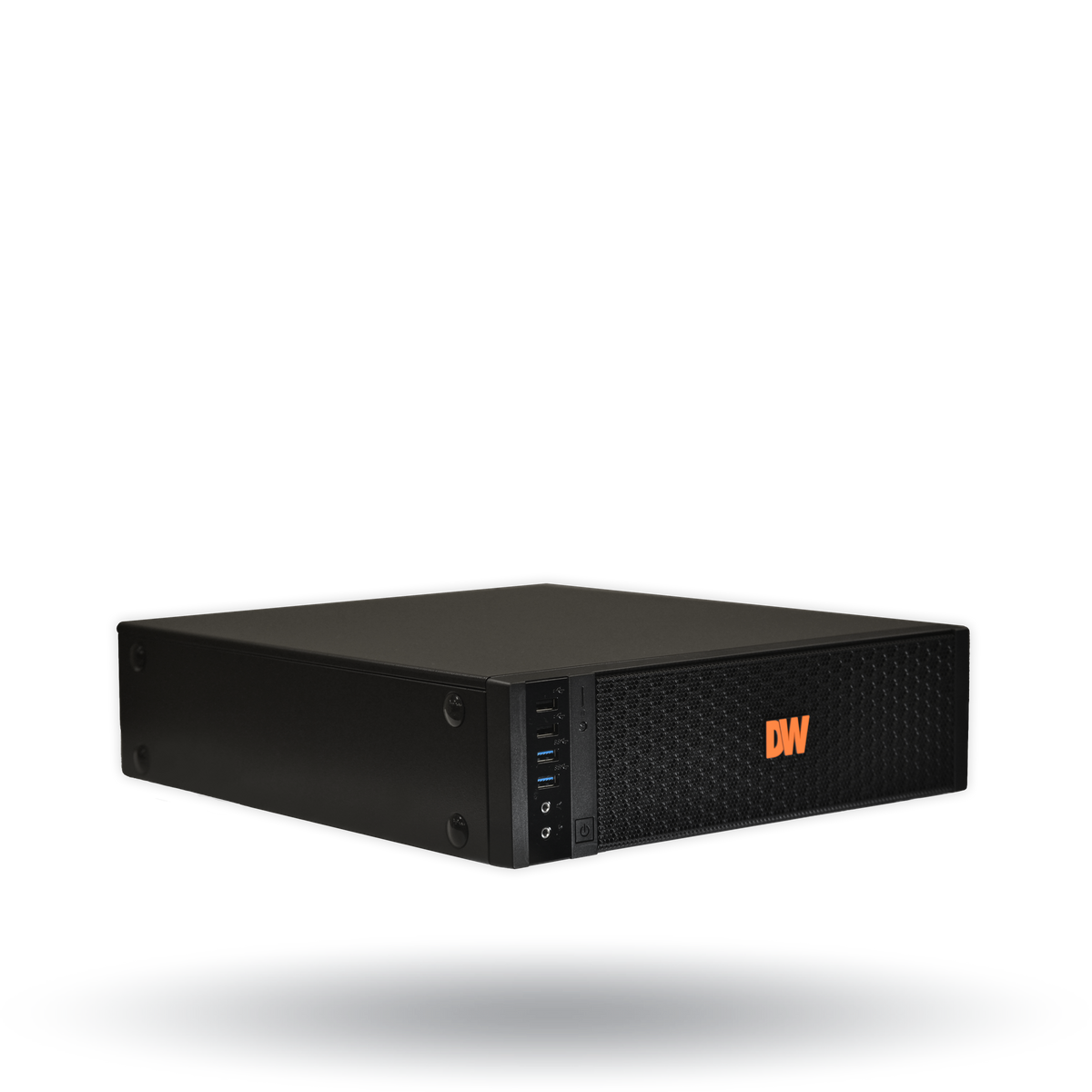

Digital Watchdog - DW-BJDX5132T-LX - Blackjack DX5 NVR Powered by DW Spectrum IPVMS 4 Camera Licenses Pre-installed, Linux OS, i5 Processor 32TB
Product SKU: DW-BJDX5132T-LX
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$4,656.15
Blackjack DX5 NVR Powered by DW Spectrum IPVMS. 4 camera licenses pre-installed, 32TB, 360 Mbps of recording throughput, 1x True HD, 1x DP, Linux OS, i5 Processor, Dual Network Card, OnVIF compliant, Graphic System Health Monitor for hardware performance, True Enterprise Scalability, Automatic Camera Detection, Local Client Display, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings, NDAA, TAA. Keyboard and Mouse Included. 5 Year Limited Warranty
Features:
- Supports all ONVIF conformant IP cameras
- Storage options 4-40TB internal storage
- Record and manage single- and multi-sensor IP cameras of any resolution up to 360Mbps throughput
- Intel i5 processor
- True HD, DP, 1 display output at a time
- 1x 1G Ethernet, 1x 2.5G Ethernet
- Windows 10 or Linux Ubuntu 20.04 LTS on separate SSD
- Hosting DW Spectrum for setup, configuration, monitoring and recording
- One-time recording license charge, fully transferable between cameras and encoders
- One (1) 4-channel license included (DW-SPECTRUMLSC004).
- No annual maintenance fees
- Simple enterprise scalability and auto device discovery
- Dual stream recording
- USB mouse and keyboard included
- Designed, assembled and tested in the U.S.A.
- NDAA/TAA compliant
- 5 Years limited warranty
| VIDEO | |
|---|---|
| CPU | Intel i5 processor |
| Display Modes | Unlimited, Customizable, Sequence |
| Local Video Output Resolution | 5120x3200 (DP, 120Hz), 7680x4320 (DP, 60Hz), 4096x2160 (True HD) |
| Local Video Outputs | For initial configuration and server management, 1 DisplayPort, True HD, 1 display output at a time |
| Memory | 16GB |
| Video Card | On-board Intel Graphics |
| Video Compression | H.264, H.265 |
| Video Operating System | Linux Ubuntu Desktop 20.04.5 LTS OS (DW-BJDX5124T-LX, DW-BJDX5132T-LX, DW-BJDX5140T-LX), Windows 10 IoT Enterprise LTSC (DW-BJDX5124T, DW-BJDX5132T, DW-BJDX5140T) |
| OS on SSD | m.2 SSD |
| Max throughput (Mbps) | 360Mbps |
| STORAGE | |
| Raw internal storage options |         |
| RAID Options | No RAID |
| Max HDD Bay | 2 x SATA HDD |
| Maximum Storage | 12TB (DW-BJDX5112T, DW-BJDX5112T-LX), 16TB (DW-BJDX5116T, DW-BJDX5116T-LX), 24TB (DW-BJDX5124T, DW-BJDX5124T-LX), 4TB (DW-BJDX5104T, DW-BJDX5104T-LX), 8TB (DW-BJDX5108T, DW-BJDX5108T-LX), 20TB (DW-BJDX5120T, DW-BJDX5120T-LX), 32TB (DW-BJDX5132T, DW-BJDX5132T-LX), 40TB (DW-BJDX5140T, DW-BJDX5140T-LX) |
| PERFORMANCE | |
| Playback Functions | Calendar, Event search, Smart motion search, Thumbnail search, Timeline |
| PTZ control | ONVIF |
| Recording Modes | Continuous, Motion + low res always, Motion + Object, Motion + Object + Low res, Motion detection, Object + Low res, Object only |
| System Operation | Graphical user interface (GUI), Remote via DW Spectrum IPVMS, USB mouse (included) |
| NETWORK | |
| Backup | Network backup via DW Spectrum IPVMS |
| Ethernet Ports | 1x 1G Ethernet (RJ45), 1x 2.5G Ethernet (RJ45) |
| Pre-loaded VMS software | DW Spectrum IPVMS |
| Network Remote Software | Cross-platform - Windows, Linux Ubuntu and Mac, DW Spectrum Mobile App |
| ELECTRICAL | |
| Power Consumption | 300W, A UPS is recommended |
| GENERAL | |
| Accessories | Keyboard, Mouse |
| Included IP licenses | 4 |
| Operating Temperature and Humidity | 20 ~ 90% RH, 41 ~ 104 °F (5~40 °C) |
| Recorder Dimensions (H X W X D) | Desktop: 3.88” x 13.1” x 15.8” (98.5 x 334 x 402 mm) |
| Recording Licenses (Optional. Sold Separately) | Custom-ordered licenses are available by request. DW-SPCP04LSC004 - Four (4) DW Spectrum Analog Encoder IPVMS Licenses DW-SPCP16LSC016 - Sixteen (16) DW Spectrum Analog Encoder IPVMS Licenses DW-SPECTRUMLSC001 - Single DW Spectrum IPVMS Recording License DW-SPECTRUMLSC004 - Four (4) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC010 - Ten (10) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC020 - Twenty (20) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC050 - Fifty (50) DW Spectrum IPVMS Recording Licenses DW-SPECTRUMLSC100 - One hundred (100) DW Spectrum IPVMS Recording Licenses DW-SPIOLSC001 - Single DW Spectrum I/O Module IPVMS License DW-SPVWALL1X2 - Single DW Spectrum Video Wall IPVMS License Lifetime upgrades are included with no annual renewal fees. |
| USB interface | Yes |
| Warranty | 5 Year Limited Warranty |
| Weight (barebone, HDD not included) | 15.65 lbs (7.09 kg) |
| Certification |      |
| Form Factor | Slim Desktop |
