Cyber Power - PDU20BHVIEC12R - 20A (Derated to 16A), 208 - 230 V, 50Hz/60Hz, IEC-320 C20 plug, 12 IEC-320 C13, 1U Rackmount

20A (Derated to 16A), 208 - 230 V, 50Hz/60Hz, IEC-320 C20 plug, 12 IEC-320 C13, 1U Rackmount, 10 ft cord, Limited lifetime warranty

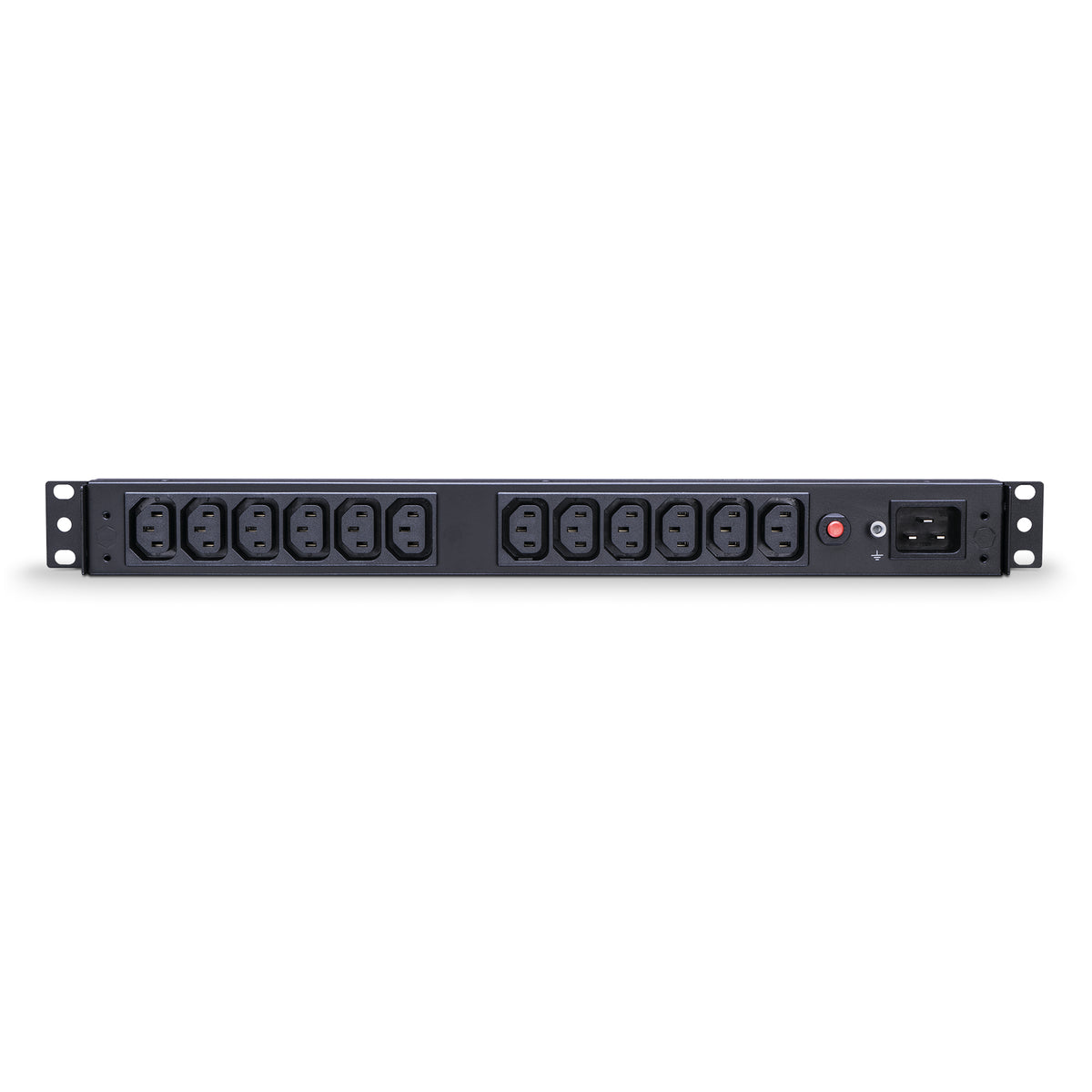

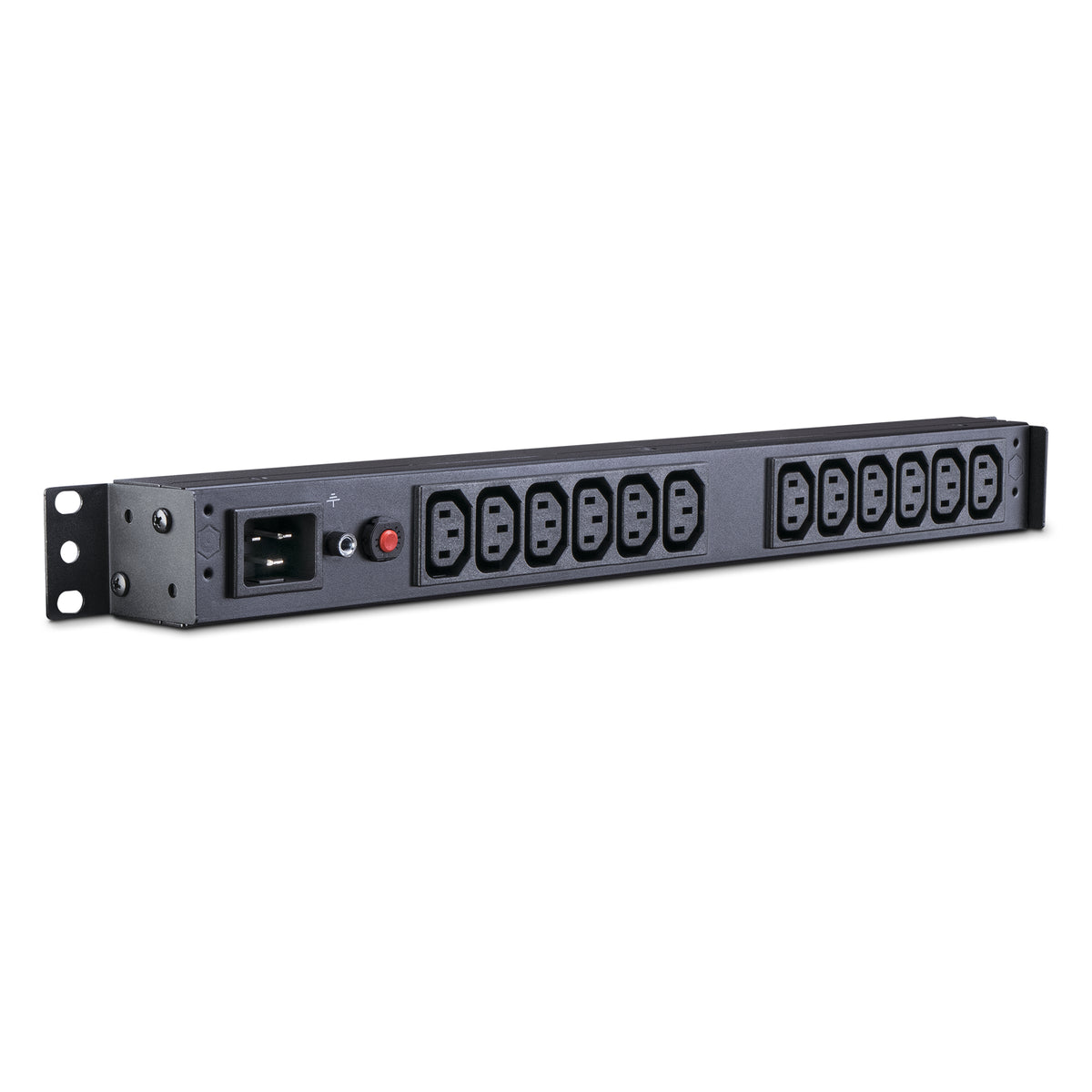

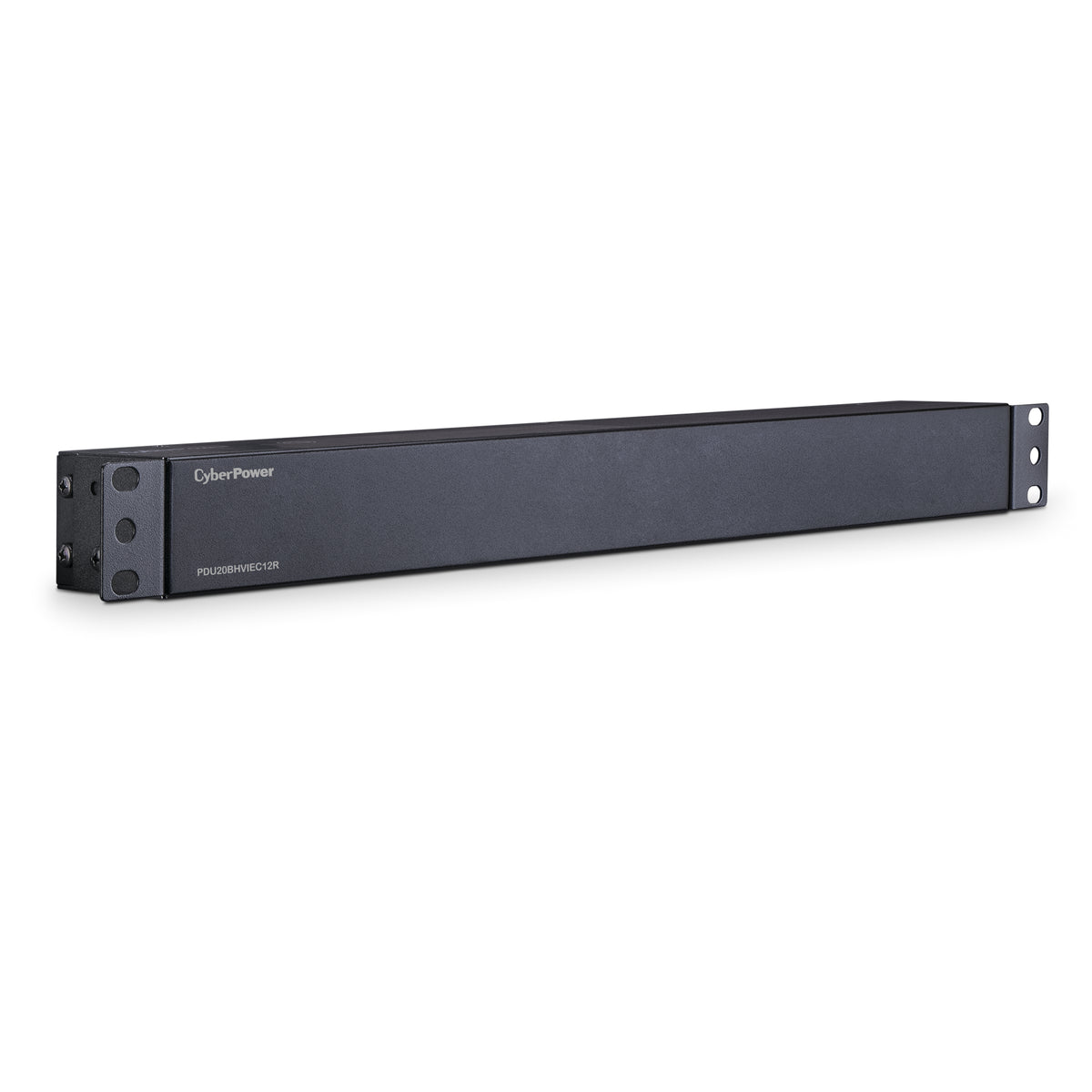

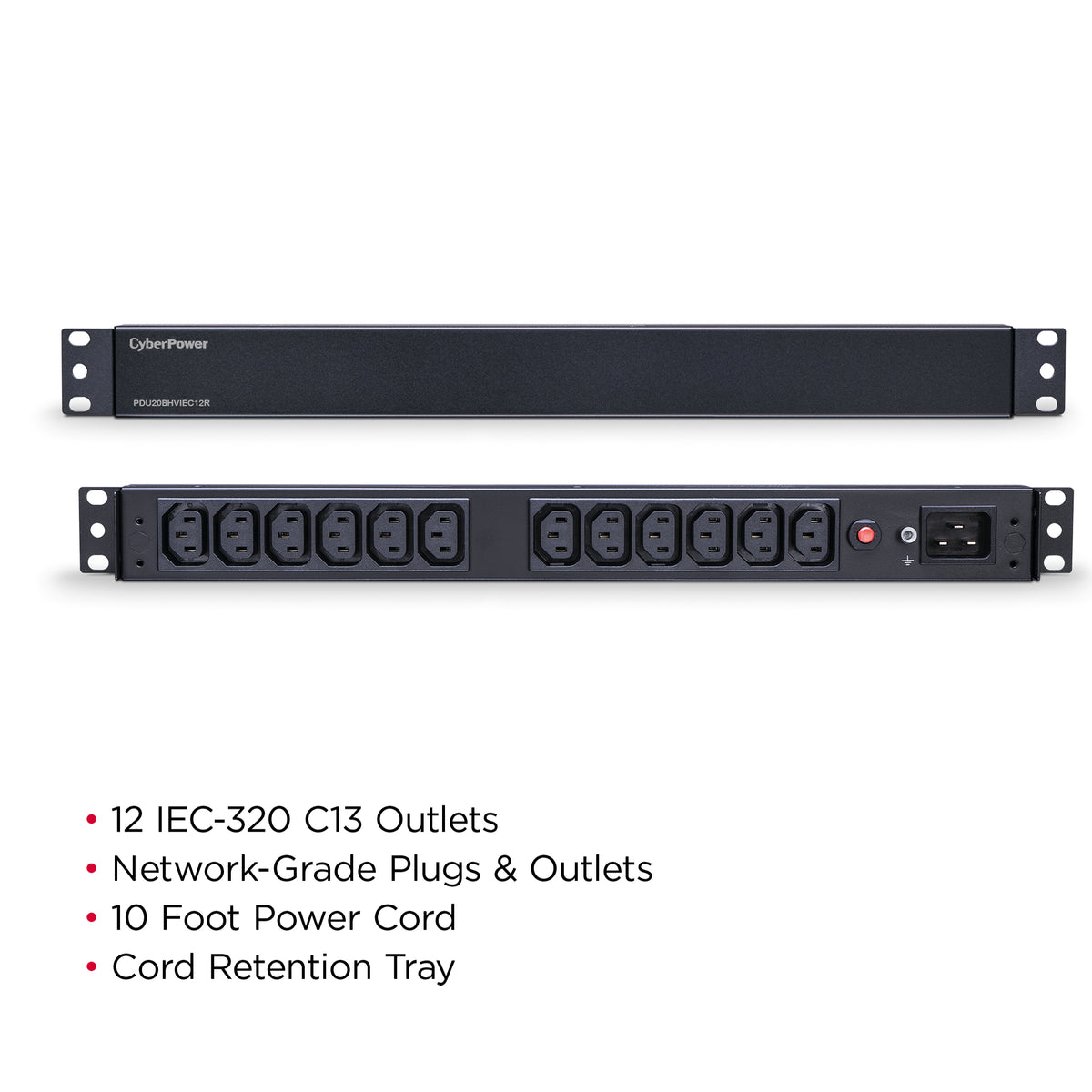

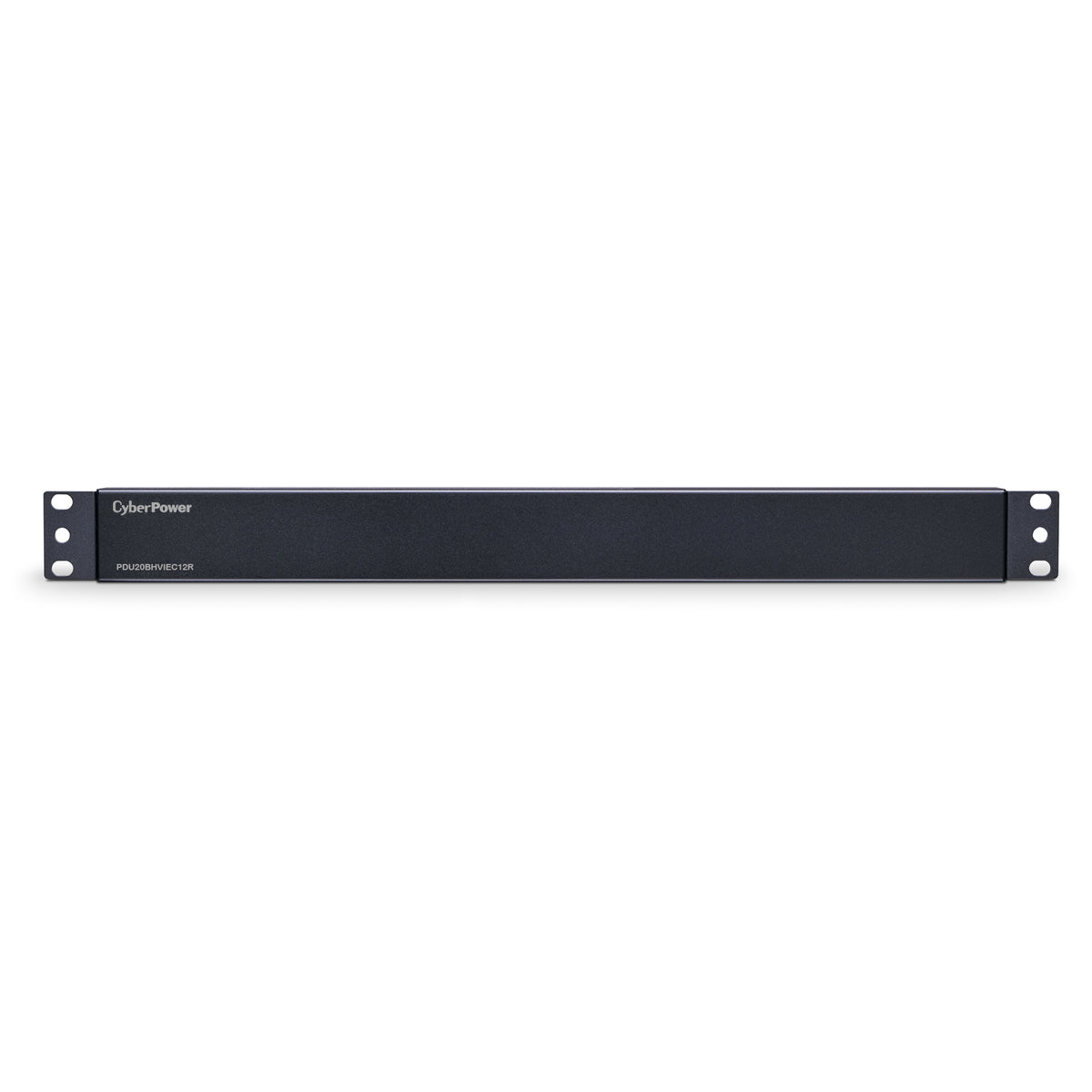

The CyberPower PDU20BHVIEC12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single IEC-320 C20 plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVIEC12R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions.

Product Features

• Power Distribution
  Delivers AC power to servers, equipment, and connected devices via a power distribution unit.

• Switch-Free Design
  Safeguards against accidental power shutdown.

• Network-Grade Plugs and Outlets
  Highly durable construction ensures the efficient distribution of power in demanding IT or industrial environments to servers, equipment, and connected devices.

• Long Input Power Cord
  Reaches distant power sources, allowing the PDU to be placed where it’s needed.

• Cord Retention Tray
  Secures power cords, keeping them organized and accessible. Helps cords stay plugged in.

• Configurable Mounting Brackets
  Allow for installation of the PDU in the following configurations: 0U (vertical, under counter, and wall mount), 1U (horizontal, vertical, under counter, and wall mount), and 2U (horizontal and wall mount).

• Durable Metal Housing
  Protects internal components and resists damage from impact or abrasions within challenging industrial environments. Also extends the life of the product.

• Limited Lifetime Warranty
  Covers defects in materials and workmanship in the product under normal use and conditions. See warranty for details.

• Understanding PDUs

  Power Distribution Units (PDUs) by CyberPower are engineered to distribute reliable network power to multiple devices. A PDU does not generate conditioned power, but delivers AC power from a UPS (uninterruptible power supply), a generator, or utility power source to servers, network/telecom equipment, and other devices. Selecting the best PDU for your needs depends on the output voltage required, the number of outlets needed for connected devices, plug and outlet types, and mounting options.

  Versatile. CyberPower PDUs are designed with as many as 38 outlets. Offered in 0U, 1U, and 2U form factors, each PDU includes the necessary hardware to be mounted vertically or horizontally inside densely configured rack enclosures. The PDU can also be mounted on a wall or under a shelf.

  Scalable. In smaller networks, conditioned power can be distributed through a single PDU from a UPS, while a complex data center might require the connection of multiple PDUs to a large-capacity UPS system.
