AVYCON - AVC-VNN81FLT/2.8 - (NDAA) 4K (8.4MP) IP H.265 IR FD Vandal Dome, 20fps@3840x2160, True D&N (ICR), 2.8mm Fixed Lens, 24 Smart IR LED's, 1 Audio In/Out, Built-in MIC, 1 Alarm In/Out, DC12V, PoE Built-in
AVYCON - AVC-VNN81FLT/2.8 - (NDAA) 4K (8.4MP) IP H.265 IR FD Vandal Dome, 20fps@3840x2160, True D&N (ICR), 2.8mm Fixed Lens, 24 Smart IR LED's, 1 Audio In/Out, Built-in MIC, 1 Alarm In/Out, DC12V, PoE Built-in
AVYCON

AVYCON - AVC-VNN81FLT/2.8 - (NDAA) 4K (8.4MP) IP H.265 IR FD Vandal Dome, 20fps@3840x2160, True D&N (ICR), 2.8mm Fixed Lens, 24 Smart IR LED's, 1 Audio In/Out, Built-in MIC, 1 Alarm In/Out, DC12V, PoE Built-in

Product SKU: AVC-VNN81FLT/2.8
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$444.15
$639.00
  • Description
  • Specifications
  • Downloads

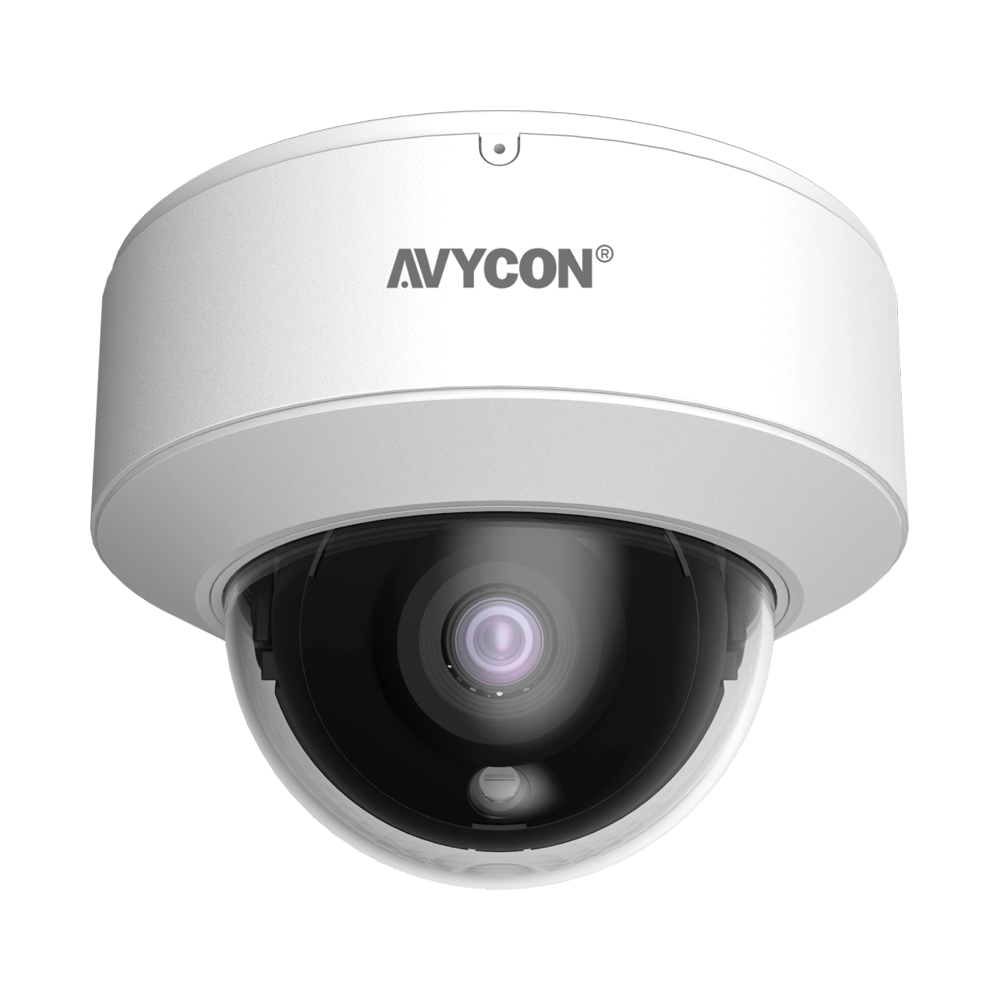

The AVYCON AVC-VNN81FLT/2.8 camera is a 8MP H.265 HD AI Dome Network Camera with Smart Features. This 8MP IP camera supports True Day and Night mode, PoE, and up to 98ft. of Smart IR Illumination. This camera includes a Fixed 2.8mm Lens. Also standard with this series is 3D Digital NR, ROI, HLC, WDR, and BLC capabilities along with IP67 and IK10 outdoor rating. Optional accessories for this camera include a Junction Box Mount, Wall Mount, Ceiling Mount, and a Ceiling Mount Bracket.


Features:

  • 8MP (3840 X 2160) @ 20fps
  • Max. Resolution: 3840 × 2160
  • Supports Smart H.265/H.264 Encoding
  • True Day & Night ICR
  • 1CH audio input; 1CH built-in MIC
  • 1CH alarm input; 1CH alarm output
  • 3D DNR, DWDR, HLC, BLC and ROI Encoding
  • Supports Triple Streams
  • Supports Remote Access with Windows, macOS, iOS and Android
  • IP67 & IK10 Ingress Protection
  • Built-in micro SD card slot with video and still image capture function (up to 256GB)
  • DC12V / PoE (802.3af, < 9W)
  • P2P Function Optional
  • Intelligent Analytics
CAMERA
Image Sensor1/2.8" Progressive Scan CMOS
Image Size3840 x 2160
Shutter Speed1/3s to 1/100,000s
Min. IlluminationColor: 0.02 lux @ F1.6(AGC ON); BW: 0 lux with IR
IR DistanceUp to 98ft
LensFixed 2.8mm @ F1.6Horizontal FoV: 104° Vertical FoV: 55° Diagonal FoV: 125°
FocusFixed
Lens MountM12
Day & NightICR
Wide Dynamic Range120dB
Digital NR3D DNR
Backlight Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
DefogYes
S/N Ratio≥50dB
EISYes
Angle AdjustmentPan: 0°~355° ; Tilt: 0°~70° ; Rotation:0°~180°
VIDEO IMAGE
Video CompressionMain stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression StandardBaseline Profile/Main Profile/High Profile
Resolution8MP (3840×2160), 6MP (3072×2048), 5MP (2592×1944), 4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480 × 240, VGA (640x480)
Main Stream60Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (1~25fps); HFR mode: 1080P/720P (60Hz: 1~60fps; 50Hz: 1~50fps)
Sub Stream60Hz: 720P/D1/CIF/VGA/480x240 (1~30fps); 50Hz: 720P/D1/CIF/VGA/480x240 (1~25fps)
Third Stream60Hz: 720P/D1/480x240/CIF (1~30fps); 50Hz: 720P/D1/480x240/CIF (1~25fps)
Video Bit Rate64 Kbps ~ 12 Mbps (CBR / VBR Adjustable)
Image SettingsDay & Night, BLC, WDR, DNR, Privacy Masking, White Balance
ROIEach ROI to be configured separately
NETWORK / INTERFACE
NetworkRJ45(10/100BASE-T)
Network ProtocolUDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPs, QoS
Interface ProtocolONVIF (Profile S, G, T, M)
Web BrowserIE11 (Plug-in required) / Google Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+
Online ConnectionSupport simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
SecurityVideo encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock,IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP
StorageMicro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function
Video OutputNo
Audio1CH audio input; 1CH build-in MIC
Audio CompressionG711A / U
Alarm1CH alarm input; 1CH alarm output
Hardware ResetYes
DORI DISTANCE
Lens2.8mm
Detect272ft (83m)
Observe108ft (33m)
Recognize56ft (17m)
Identify26ft (8m)
FUNCTIONS
Remote MonitoringWeb Browser Interface, Mobile App, AVYCON CVMS 2.0
Smart AlarmMotion detection; sensor alarm, SD card error; SD card full, IP address conflict, cable disconnection
Smart AnalyticsLine crossing, region intrusion/entrance/exiting detection, illegal parking detection, abandoned/missing object detection, Target counting human/motor vehicle/non-motor vehicle by Line crossing, Exception detection, Face detection and Face capture
Video MetadataSimultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 5 motor vehicle features, and 1 non-motor vehicle feature
General FunctionWatermark, video mask, heartbeat, image distortion correction, corridor pattern
GENERAL
Power SupplyDC12V / PoE (IEEE802.3af)
Power Consumption<9W
Operating Environment-30°C ~ 60°C (-22°F ~ 140°F) Humidity: less than 95% (non-condensing)
Storage Environment-30°C ~ 65°C (-22°F ~ 149°F) Humidity: less than 95% (non-condensing)
Dimensions (in)Ø4.68 × 3.45
Weight (lb)Approx. 1.41 lbs
Ingress ProtectionIP 67 & IK 10
CertificateCE, FCC
InstallationCeiling mounting; Wall mounting
AVC-VNN81FLT_2.8_20Specification_20Sheet-EN.pdf:
