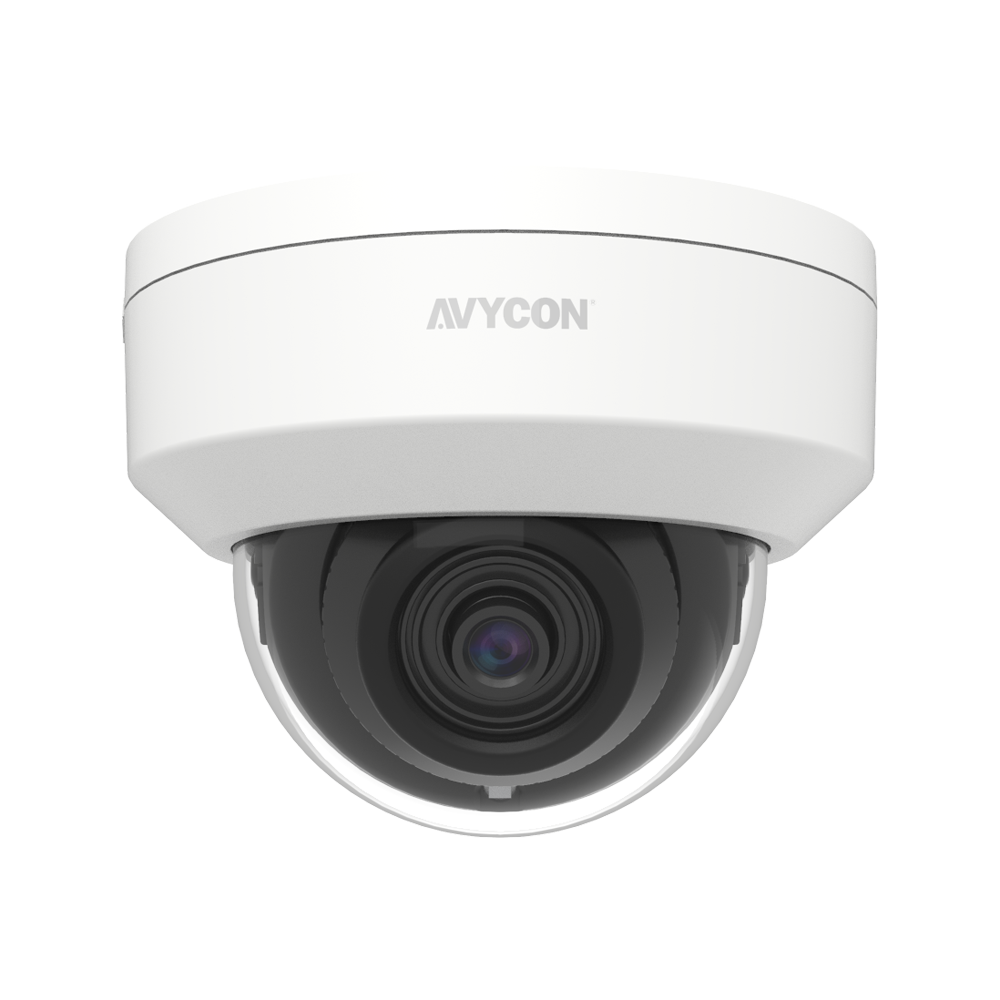

AVYCON - AVC-NKD51F28 - 5MP (2592x1944), H.265+ Indoor Dome IP Camera, InfiniteStar™, True WDR, AI with FD, 5MP@30FPS, Triple Stream, 2.8mm Lens, 66ft Smart IR's, Audio In/Out, MicroSD, Onvif, DC12V / PoE, White, Made in Korea (TAA)
AVYCON - AVC-NKD51F28 - 5MP (2592x1944), H.265+ Indoor Dome IP Camera, InfiniteStar™, True WDR, AI with FD, 5MP@30FPS, Triple Stream, 2.8mm Lens, 66ft Smart IR's, Audio In/Out, MicroSD, Onvif, DC12V / PoE, White, Made in Korea (TAA)
AVYCON

AVYCON - AVC-NKD51F28 - 5MP (2592x1944), H.265+ Indoor Dome IP Camera, InfiniteStar™, True WDR, AI with FD, 5MP@30FPS, Triple Stream, 2.8mm Lens, 66ft Smart IR's, Audio In/Out, MicroSD, Onvif, DC12V / PoE, White, Made in Korea (TAA)

Product SKU: AVC-NKD51F28
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$305.10
$439.00
  • Description
  • Specifications
  • Downloads

5MP (2592x1944), H.265+ Indoor Dome IP Camera, InfiniteStar, True WDR, AI with FD, 5MP@30FPS, Triple Stream, 2.8mm Lens, 66ft Smart IR's, Audio In/Out, MicroSD, Onvif, DC12V / PoE, White, Made in Korea (TAA)



Features:

  • 5MP (2592x1944) @ 30fps
  • Max. Resolution: 2592x1944
  • H.265+/H.265, H.264+/H.264, MJPEG Encoding
  • Day & Night AUTO ICR
  • Fixed 2.8mm Lens (F1.6)
  • 3D DNR, WDR, HLC, BLC and ROI Encoding
  • Intelligent Analytics
  • Built-in micro SD card slot with video and still image capture function (up to 256GB)
  • DC12V/PoE power supply
  • Support remote monitoring by AVYCON ONE
  • (Mobile APP) and AVYCON CMSONE (CMS)
VIDEO
Imaging Device1/2.7" Progressive CMOS
ResolutionMain Stream: 2592x1944, 2592x1520, 2048x1536, 2304x1296, 1920x1080, 1280x960
Sub Stream : 1920x1080, 1280x720, 640x480
Mobile Stream: 640x480, 320x240
Max. FramerateMain Stream: Max. 30fps/25fps (60Hz/50Hz)
Sub Stream: Max. 30fps (60Hz/50Hz)
Mobile Stream: Max. 30fps (60Hz/50Hz)
Min. IlluminationColor: 0.004 lux @ F1.6 (AGC on)
B/W: 0 lux (IR LED on)
CompressionVideo: H.265+/H.265 Main Profile, H.264+/H.264 High Profile, MJPEG (Sub Stream Only)
Audio: G.711a / G.711u
Bitrate ControlCBR or VBR (256Kbps ~ 8Mbps)
LENS
Focal Length (Zoom Ratio)2.8mm Fixed
Max. Aperture RatioF1.6
Angular Field of ViewHorizontal: 110°, Vertical: 58°, Diagonal: 133°
Min. Object Distance5.9ft (1.8M)
Focus ControlN/A
Lens TypeFixed (M12)
PAN / TILT / ROTATE
Pan / Tilt / Rotate AdjustmentManual Adjustment
OPERATIONAL
Camera TitleTitle Displayed up to 32 characters
Day & NightAUTO (ICR)
Exposure CompensationBLC, HLC, WDR
Digital Noise Reduction3D DNR
Digital Image StabilizationN/A
Motion DetectionRectangle Grid (8 Levels of Sensitivity)
Privacy Masking4 Rectangle Zones
Gain ControlAUTO
White BalanceAUTO / MANUAL
LDCN/A
Eletronic Shutter SpeedAUTO / Manual (1/5 ~ 1/20000s)
Video RotationFlip / Mirror
AnalyticsFace Detection (FD), Pedestrian & Vehicle Detection (PD&VD), Intrusion Detection (ID), Line Crossing Detection (TD),
Tripwire Counting (TC), Stationary Object Detection (OBJ), Heat Map (HM), Crowd Density Detection (CD), Queue Length Detection (QD),
License Plate Detection (LPR), Rare Sound Detection (RSD)
Alarm I/ON/A
Alarm TriggersMotion, Sound Detection
Alarm EventsNotification via E-mail, Image file upload via FTP, Video file upload via FTP, Image file upload to Cloud (Dropbox),
Video file upload to Cloud (Dropbox), Micro SD recording at event triggered, Event Push via HTTP / UDP
Audio In1 Line-In (RCA)
Audio Out1 Line-Out (RCA)
IR Viewable Length65ft (20M)
NETWORK
EthernetRJ45 (10/100BASE-T)
StreamingUnicast / Multicast
ProtocolTCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
SecurityLogin Authentication, IP Address Filtering, User access log
Application Programming InterfaceONVIF Profile S/G/T, REST API
GENERAL
Webpage LanguageEnglish, Korean
Edge StorageMicro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function
MemoryN/A
ENVIRONMENTAL & ELECTRICAL
Operating Temperature / Humidity-31°~131°F (-35°~+55°C) / less than ≤ 95% RH
Storage Temperature / Humidity
Input VoltagePoE (IEEE802.3at) / 12VDC
Power ConsumptionMax. 3W (IR LED off), Max. 4W (IR LED on)
MECHANICAL
Color / MaterialWhite / Plastic
Product Dimensions / WeightØ4.72x3.62in (120x92mm) / 0.61lbs (276g)
DORI (EN62676-4 STANDARD)
Detect (25PPM / 8PPF)
Observe (63PPM / 19PPF)
Recognize (125PPM / 38PPF)
Identify (250PPM / 76PPF)
DataSheet_AVC-NKD51F28_EN_compressed_603b01c5-cf6f-46c1-b4c2-8aa6bea01a74.pdf:
AVC-NS_20Series_20Manual_10.pdf:
Diversity_20Cameras_20Comparison_20Chart_12.pdf:
Diversity_20IP_20Quick_20Start_20Guide_22.pdf:
