AVYCON - AVC-KNN41FT/2.8 - (NDAA) 4MP IP H.265 IR Flat Dome, 30fps@2560x1440, True D&N (ICR), True WDR, 2.8mm Fixed Lens, 12 IR LED's, Built-in MIC, 1 Audio In, DC12V, PoE Built-in
AVYCON - AVC-KNN41FT/2.8 - (NDAA) 4MP IP H.265 IR Flat Dome, 30fps@2560x1440, True D&N (ICR), True WDR, 2.8mm Fixed Lens, 12 IR LED's, Built-in MIC, 1 Audio In, DC12V, PoE Built-in
AVYCON

AVYCON - AVC-KNN41FT/2.8 - (NDAA) 4MP IP H.265 IR Flat Dome, 30fps@2560x1440, True D&N (ICR), True WDR, 2.8mm Fixed Lens, 12 IR LED's, Built-in MIC, 1 Audio In, DC12V, PoE Built-in

Product SKU: AVC-KNN41FT/2.8
Available:
Only 1000 items in stock
1000 items in stock
In stock
Pre-order
Out of stock
$295.65
$425.00
  • Description
  • Specifications
  • Downloads

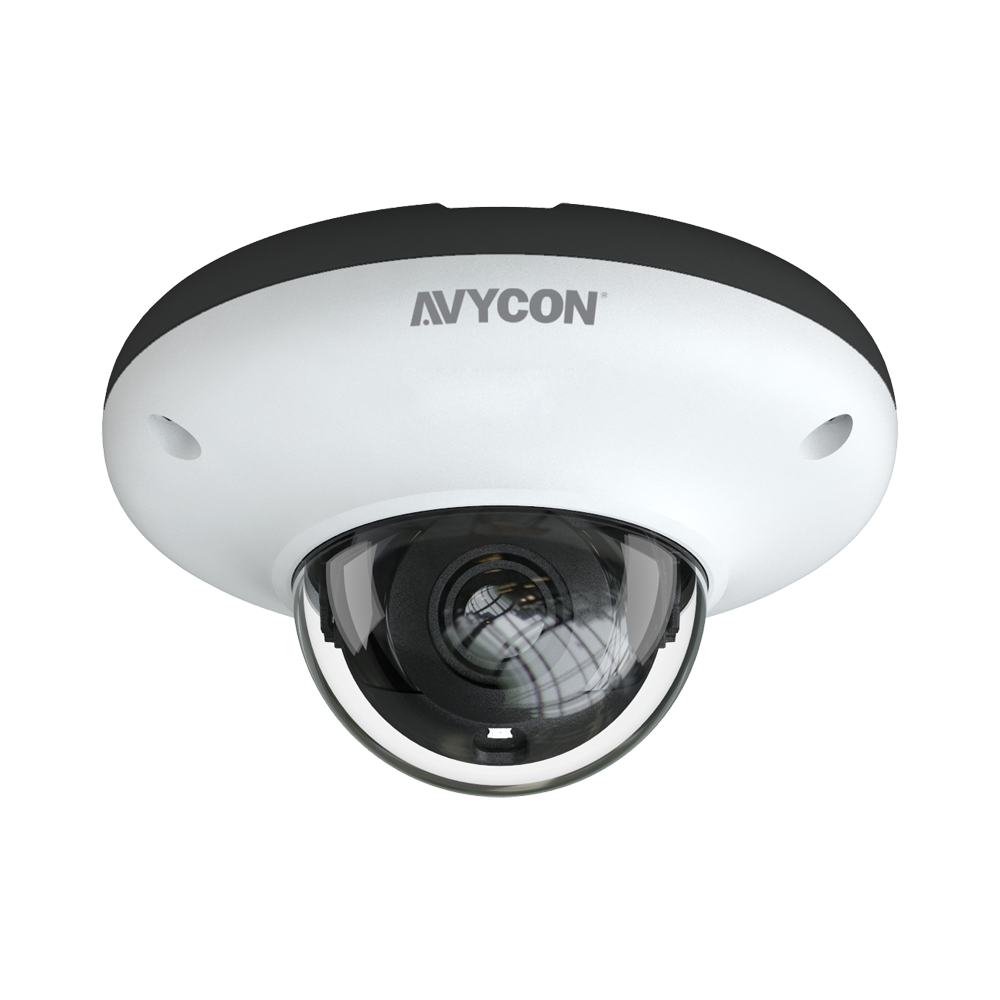

The AVC-KNN41FT/2.8 is a 4MP H.265 Network IR Dome Camera with a maximum resolution of 4MP and a fixed 2.8mm Iris lens. With Smart IR Illumination, this camera can view a distance of up to 33ft. at night time and provide true day/night mode with ICR. Some additional features include Defogging Capabilities, ROI Encoding, PoE support, and a microSD memory card slot of up to 256GB for standalone recording applications. The AVC-KNN41FT/2.8 is equipped with a smart alarm that includes motion features and an multi-application remote monitoring system that supports browser, mobile, and CVMS monitoring



Features:

  • H.265 Main Profile Video Compression
  • Maximum Resolution: 2592 x 1520
  • 4MP (2592 x 1520) Full Real Time Coding
  • Smart IR Illumination Up to 33ft.
  • True Day/Night ICR Auto Switch
  • 3D DNR, True WDR, HLC & BLC
  • Supports Defog
  • Supports ROI Encoding
  • Smart Alarm with Motion Features
  • Supports Local CVBS Video Output / Analog Video Output
  • Built-in micro SD card slot with video and still image capture function (up to 256GB)
  • Supports Triple Streams
  • P2P Remote Connection Function
  • Supports Monitoring by Smart Phones, iPad, and Remote Monitoring
  • DC12V (±10%) / PoE (802.3af) <3.5W (IR ON)
  • NDAA Compliant
  • UL-listed
CAMERA
Image Sensor1/3" Progressive Scan CMOS CMOS
Image Size2592 x 1520
Shutter Speed1/2s to 1/100,000s
Iris TypeFixed Iris
Min. IlluminationColor: 0.005 lux @ F1.6(AGC ON); BW: 0 lux with IR
IR DistanceUp to 65ft
LensFixed 2.8mm @ F1.6 Horizontal FoV: 95.3° Vertical FoV: 53.2° Diagonal FoV: 100.7°°
FocusFixed
Lens MountM12
Day & NightICR
Wide Dynamic Range120dB
Digital NR3D DNR
Backlight Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
DefogYes
S/N Ratio≥50dB
Angle AdjustmentPan: 0°~360° ; Tilt: 0°~70° ; Rotation:0°~350°
VIDEO IMAGE
Video CompressionMain stream: H.265+ / H.265 / H.264+ / H.264 Sub/third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression StandardBaseline Profile/Main Profile/High Profile
Resolution4MP (2592×1520), 2K (2560×1440), 3MP (2304×1296), 1080P (1920×1080), 720P (1280×720), D1, CIF, 480×240, VGA(640×480)
Main Stream60Hz: 4MP/2K/3MP/1080P/720P (1~30fps); 50Hz: 4MP/2K/3MP/1080P/720P (1~25fps); HFT mode: 1080P/720P (60Hz : 1~30fps; 50Hz: 1~25fps)
Sub Stream60Hz: 720P/D1/CIF/VGA (1~30fps); 50Hz: 720P/D1/CIF/VGA (1~25fps)
Third Stream60Hz: D1/480x240/CIF (1~30fps); 50Hz: D1/480x240/CIF (1~25fps)
Video Bit Rate64 Kbps ~ 8 Mbps (CBR / VBR Adjustable)
Image SettingsROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image Mirror, Image Flip, NR, etc. adjustable through client software or web browser
ROIEach ROI to be configured separately
NETWORK / INTERFACE
Network1 x RJ45 10M / 100M Self-Adaptive Ethernet port
Network ProtocolTCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP
Interface ProtocolONVIF (Profile S, G, T, M)
Online ConnectionSupport simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
SecurityVideo encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP/RTSP
StorageMicro SD/SDHC/SDXC Slot (up to 256GB) with video and still image capture function
Video OutputNo
Audio1CH audio input; 1CH build-in MIC
Audio CompressionG711A / U
AlarmNo
Hardware ResetYes
DORI DISTANCE
Lens2.8mm
Detect199.11ft (60.69m)
Observe97.65ft (24.28m)
Recognize39.82ft (12.14m)
Identify19.91ft (6.07m)
FUNCTIONS
Remote MonitoringWeb Browser Interface, Mobile App, AVYCON CVMS 2.0
Smart AlarmMotion detection, SD card error, SD card full, IP address conflict, cable disconnection
Smart AnalyticsLine crossing, region intrusion/entrance/exiting, loitering detection, illegal parking detection, abandoned/missing object detection, Target counting human/motor vehicle/non-motor vehicle by Line crossing, Exception detection, Face detection and Face capture
Video MetadataSimultaneously captures human body, motor vehicle, and non-motor vehicle and extracts 13 human features, 5 motor vehicle features, and 1 non-motor vehicle feature.
General FunctionWatermark, video mask, heartbeat, image distortion correction, corridor pattern
GENERAL
Power SupplyD12V/POE(IEEE802.3af)
Power Consumption<6W
Operating Environment(-22°F ~ 140°F) -30°C ~ 60°C Humidity: less than 95% (non-condensing)
Storage Environment(-22°F ~ 149°F)-30°C ~ 65°C Humidity: less than 95% (non-condensing)
Dimensions (in)Ø 4.33 × 2.35
Weight (lb)Approx. 0.83 lbs
Ingress ProtectionIP66
DataSheet_AVC-KNN41FT-2.8_EN_compressed_59ba5824-b606-4329-9b04-1b7702c09512.pdf:
